FortiGate-100F with Bundle Set - WINPROMY CONSULTANCY SDN BHD. (1065242-V) All Rights Reserved.

Roll over image to zoom in Click on image to zoom

FortiGate-100F(Local Warranty in Malaysia)

Name: FortiGate-100F (Only Device)
Brand: Fortinet
Price: 11046.0 MYR
Availability: InStock

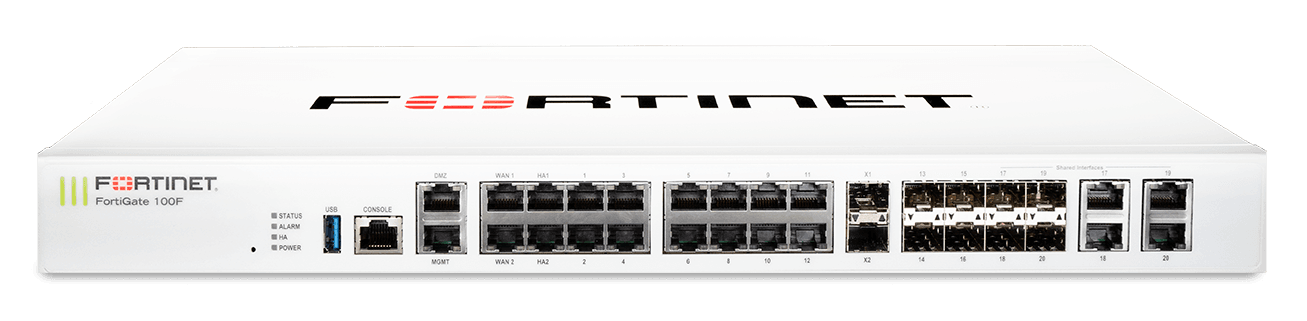

FortiGate® 100F Series

The FortiGate 100F series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox

Performance

Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection

Certification

Independently tested and validated best security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives

Networking

Application aware routing with in-built SD-WAN capabilities to achieve consistent application performance and the best user experience
Built-in advanced routing capabilities to deliver high performance with encrypted IPSEC tunnels at scale

Management

Includes a management console that is effective and simple to use, which provides a comprehensive network of automation & visibility
Provides Zero Touch Provisioning leveraging Single Pane of Glass Management powered by the Fabric Management Center
Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

FortiGate 100F

FG-100F Specification

FG-100F Specification
Type	FORTIGATE 100F
Interfaces and Modules
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	4
USB Port	1
Console Port	1
Internal Storage	N/A
Included Transceivers	0
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP)	5 μs
Firewall Throughput (Packet per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,800
Application Control Throughput (HTTP 64K)	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	128 / 64
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Dimensions and Power
Height x Width x Length	1.73 x 17 x 10 inches 44 x 432 x 254 mm
Form Factor	Rack Mount, 1 RU
AC Power Supply	100–240V AC, 50-60
Power Consumption (Average / Maximum)	35.1 W / 38.7 W
Heat Dissipation	119.77 BTU/h
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	93.8 BTU/h
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Compare to Bundle Set

Sku	FG-100F	FG-100F-BDL-950-12
Firewall	20 Gbps	20 Gbps
IPS	2.6 Gbps	2.6 Gbps
NGFW	2 Gbps	2 Gbps
Threat Protection	1 Gbps	1 Gbps
Interfaces	22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.	22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
Bundle	N/A	FortiGate-100F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection

Compare to Similar Item

Sku	FG-100F	FG-101F
Firewall	20 Gbps	20 Gbps
IPS	2.6 Gbps	2.6 Gbps
NGFW	2 Gbps	2 Gbps
Threat Protection	1 Gbps	1 Gbps
Interfaces	22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.	22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
Internal Storage	N/A	1x 480 GB SSD
