Description
LOGITECH TAP 939-001796
(2 years Local Warranty in Malaysia)
Touch control for the workplace, including video conferencing room solutions for Google, Microsoft, and Zoom.
ROOM SOLUTIONS WITH LOGITECH TAP
Video conferencing room solutions with Logitech Tap deliver calendar integration, touch-to-join, instant content sharing, and always-on readiness. Pre-configured with room-optimized software from Google, Microsoft, or Zoom, Logitech Room Solutions include all necessary components: Tap touch controller, small form factor computer, in-wall rated cabling, and Logitech MeetUp or Rally conference camera.
-
DIMENSIONS
- Height x Width x Depth:
- 2.3 in (58mm) x 9.6 in (244 mm) x 7.0 in (179 mm)
- Weight: 2.75 lbs (1.25 kg)

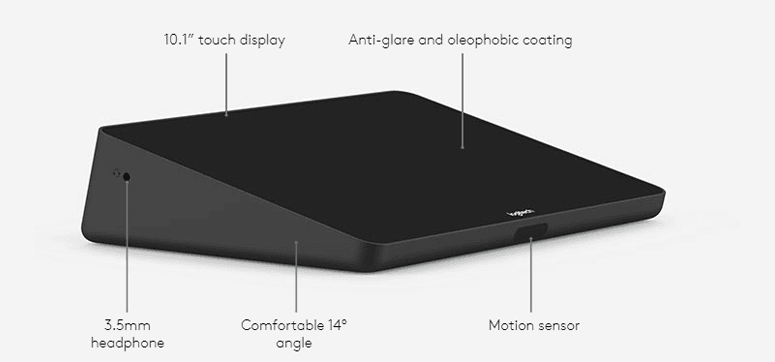

Touch Screen
- 10.1” diagonal screen with 14° display angle
Oleophobic and anti-glare coating
1280 x 800 resolution
SYSTEM REQUIREMENTS
- Windows® 10
- Chrome™ OS 75 and higher
- USB 2.0, 3.0, or 3.1 Type A port
Ports and Interfaces
- USB 2.0/3.0/3.1 Type C (to PC)
- USB 2.0/3.0/3.1 Type A (for accessory connection)
- HDMI input (for 1080p video + audio content sharing)
- 3.5mm / ⅛ “ 4 pole Headset Jack
TECHNICAL SPECIFICATIONS
General Specifications

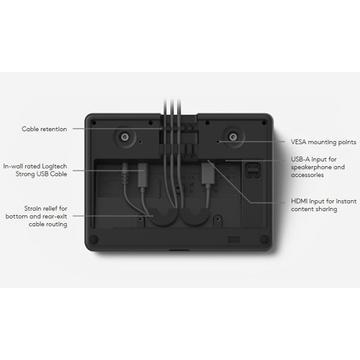

- Internal cable retention and strain relief system
- Integrated ultrasonic speaker
- Integrated PIR Motion Sensor
- 100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
- Kensington Lock slots (2)
Compatibility and Certifications
Logitech Tap is certified as a touch controller for video conferencing room solutions
- Google Hangouts Meet hardware
- Microsoft Teams Rooms / Skype Room System
- Zoom Rooms
DisplayLink Plug and Display™: Tap connects via USB as an additional display for supported operating systems, including Windows 10 and Chrome OS
PACKAGE CONTENTS
- Tap Touch Controller
- Logitech Strong USB 2.0 / 3.0 / 3.1 / 3.2 Cable 10m (32.8 ft)
Type A (male) to Type C (male)
Aramid-reinforced
Plenum Rated
Eca / IEC 60332-1-2 Compliant
¾” Conduit friendly
- HDMI 1.4a cable 2.0m / 6.5 ft
- Power adaptor with regional plugs (100-240v) 2.95m / 9.67 ft
- VESA Mounting Screws (4)
- Microfiber Cloth
- Documentation
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
PART NUMBER
Logitech Tap SKU: 939-001796
Video
Logitech Tap Meeting Room Setup and Features w/Microsoft Teams
Learn How to Tap Into Better Meetings with Logitech Room Solutions for Microsoft
- Logitech Tap (939-001796) Datasheet
- Logitech Tap Setup Guide
- Logitech Tap Quick Reference Card - Zoom Rooms
- Logitech Tap Quick Reference Card - Microsoft Teams
- Logitech Tap Quick Reference Card - Google Meet
Review
- Logitech Tap Review – Meetings at your Fingertips - UC Today
- Logitech's New Tap Solves Videoconferencing Control Woes - PCMag

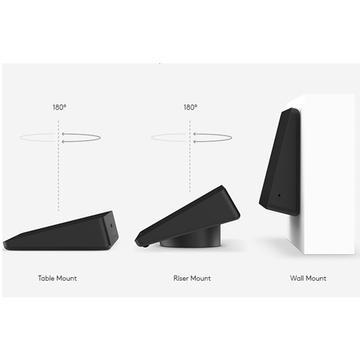

Optional Mounting Accessories
- Logitech Tap Table Mount (939-001811)
- Logitech Tap Riser Mount (939-001814)
- Logitech Tap Wall Mount (939-001817)
- Logitech PC Mount (939-001825)
 |
 |
 |
|
LOGITECH TAP TABLE MOUNTSwiveling table mount with cable management |
LOGITECH TAP RISER MOUNTElevated table mount with swivel and cable management |
LOGITECH TAP WALL MOUNTSpace-saving wall mount with cable management |
|
Display Angle |
14° | 30° | 14° |
180° Swivel |
Yes | Yes | — |
Through-Grommet Cabling |
Yes | Yes | — |
In-Wall Cabling |
— | — | Yes |
HDMI Cable Clip |
— | — | Yes |
Recommended For |
Small & Medium Rooms | Medium and Large Rooms | Huddle Rooms and Hallways |
Suitable Logitech ConferenceCam to use
Accessories
- Logitech™ Smartdock 960-001110
- Logitech™ Smartdock Extender 960-001095
- LOGITECH TAP TABLE MOUNT 939-001811
- LOGITECH TAP WALL MOUNT 939-001817
- LOGITECH TAP RISER MOUNT 939-001814
- LOGITECH PC MOUNT 939-001825
