Description

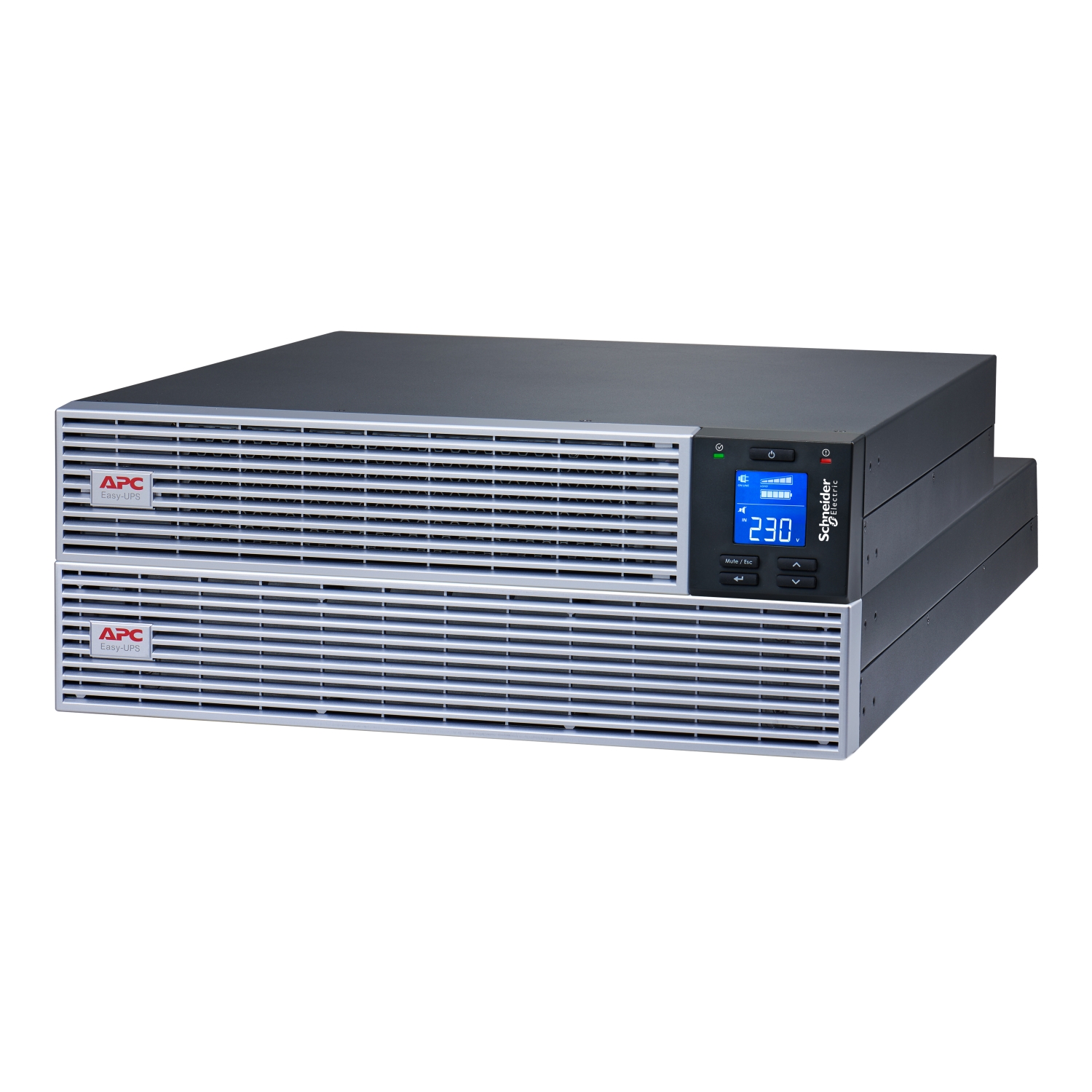

APC Easy UPS On-Line, 2000VA, Lithium-ion, Rack/Tower 4U, 230V (SRVL2KRILRK)
Why do you need Uninterruptible Power Supply (UPS)?
An Uninterruptible Power Supply (UPS) helps ensure that businesses have power protection for critical applications. A UPS provides protection for these critical systems in the event of a power disruption, whether it’s a prolonged outage or just a blip that can nonetheless damage sensitive machines such as computers and cash registers. The UPS helps provide backup power that can keep critical equipment up and running during relatively short outages. It allows you to safely power them down in the event of a longer outage and are a critical component of any business continuity plan.
Network Availability
Ability to ride out all disruptions rather than shutdown
Hardware Protection
Avoid loss or corruption caused by power issues
Data Protection
Prevent damage caused by EMI/RFI interference, and other power issues
Energy Efficiency
Lower operating costs and a smaller carbon footprint
Avoid High Cost of Downtime
+$25,000 on average per hour for small business
+$540,000 on average per hour for medium & large enterprise
What is Easy UPS?
APC Easy UPS are quality products for price-conscious customers, helping to provide power protection and backup in unstable power conditions, and consistent and reliable connectivity at critical moments.
That’s Certainty in a Connected World.
The key benefits of owning an APC Easy UPS:
• Provide real output power to support equipment during outages
• Pure sine wave output (SMV, SRV, and SRVL models) provides clean power to sensitive equipments
• Automatic Voltage Regulation (AVR) corrects utility voltage dips and surges
• Peace of mind from the trusted brand in power protection
SPECIFICATION
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 1800 W |
| Rated power in VA | 2000 VA |
| Input Connection Type | IEC 60320 C20 |
| output connection type | 6 IEC 60320 C13 |
| Number of rack unit | 4U |
| Provided equipment | Basic UPS signalling RS-232 cable USB cable RJ45 cable RJ11 cable C13-C14 power cord IEC-C20 - Shuko input power cord Rack mounting brackets Stabilization feet User manual Safety guide Battery cable |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| battery type | Li-Ion (Lithium-Ion) |
| battery voltage | 48 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4.8 h |
| Battery life | 8…10 year(s) |
| Battery charger power | 480 W |
| Battery option | SRVL48RMBP2U 1 5280 VAh SRVL48RMBP2U 2 8064 VAh |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black with silver front bezel |
|---|---|
| Height | 17.2 cm |
| Width | 43.8 cm |
| Depth | 61.6 cm |
| Net weight | 37.1 kg |
| USB compatible | Yes |
| Mounting position | Horizontal and vertical |
| Input voltage limits | 160...300 V full load 110...300 V 60 % load |
|---|---|
| Network frequency | 40...70 Hz auto-sensing |
| Maximum configurable power in VA | 2000 VA |
|---|---|
| Maximum configurable power in W | 1800 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 90 % (full load) |
| bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| product certifications | CB CE RCM EAC TISI UKCA KC UN 38.3 IEC 62619 |
|---|
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 683 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 945 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 48 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 50.15 kg |
| Warranty | 3 years UPS repair or replace; 5 years battery repair or replace |
|---|
