Description

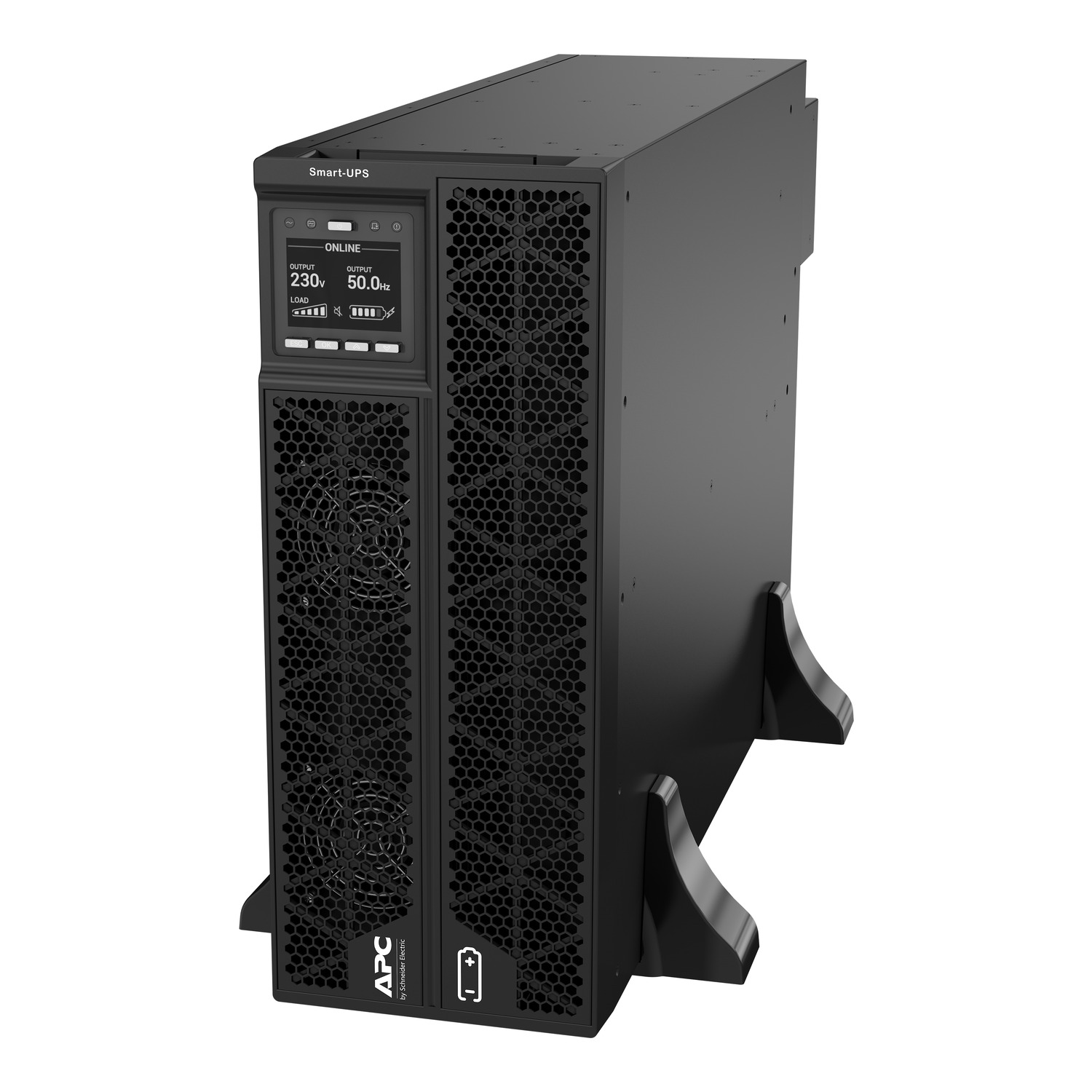

APC Smart-UPS On-Line, 6kVA, Rack/Tower, 230V (SRTG6KXLI)
Compact, efficient and flexible power protection for business applications.
Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.
Smart-UPS On-Line is capable of supporting loads from 5 - 10kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.
That’s Certainty in a Connected World.
High Output Power Factor
More real output power in watts. Unity on 5kVA – 10kVA units.
High Efficiency “Green Mode”
Achieves efficiency greater than 98%, which helps save utility and cooling costs without compromising performance or reliability.
Multi-color LCD Display
Intuitive interface provides detailed and accurate information with the ability to configure locally.
Switchable Outlet Groups
Ability to control a group of receptacles independent from the main UPS.
Pre-installed Network Card
Ability to control a group of receptacles
APC Smart-Slot
Ability to add APC accessories for additional communication options.
Three-year Warranty on Electronics
Additional year of warranty protection for electronics provides peace of mind.
Emergency Power Off (EPO)
Remote UPS shutoff in the event of an emergency.
Communication Ports
Serial, USB and SmartSlot for network accessory cards.
SPECIFICATION
| Main Input Voltage | 230 V |
|---|---|
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| output connection type | 2 IEC 60320 C13 1 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| battery type | Lead-acid battery |
| Provided equipment | Smart UPS signalling RS-232 cable User manual |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 1 |
| additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| battery voltage | +/- 96 V |
| Battery charger power | 239 W rated |
| Battery power in VAH | 960 VAh capacity 960 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC170 |
| Battery option | SRTG192XLBP4 1 2688 VAh SRTG192XLBP4 2 4488 VAh SRTG192XLBP4 3 6461 VAh SRTG192XLBP4 4 8000 VAh |
| Extended runtime | 1 |
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 17.78 cm |
|---|---|
| Width | 44 cm |
| Depth | 62 cm |
| Net weight | 51.9 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160...285 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Maximum configurable power in W | 6000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| Full load runtime | 00:02:15 6000 W |
| Half load runtime | 00:08:30 3000 W |
| Maximum configurable power in VA | 6000 VA |
| product certifications | CE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...6600 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1330.74 Btu/h |
| IP degree of protection | IP20 |
| Preinstalled device | Network management card 3 with environmental monitoring |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.5 cm |
| Package 1 Width | 79 cm |
| Package 1 Length | 59 cm |
| Package 1 Weight | 59 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
