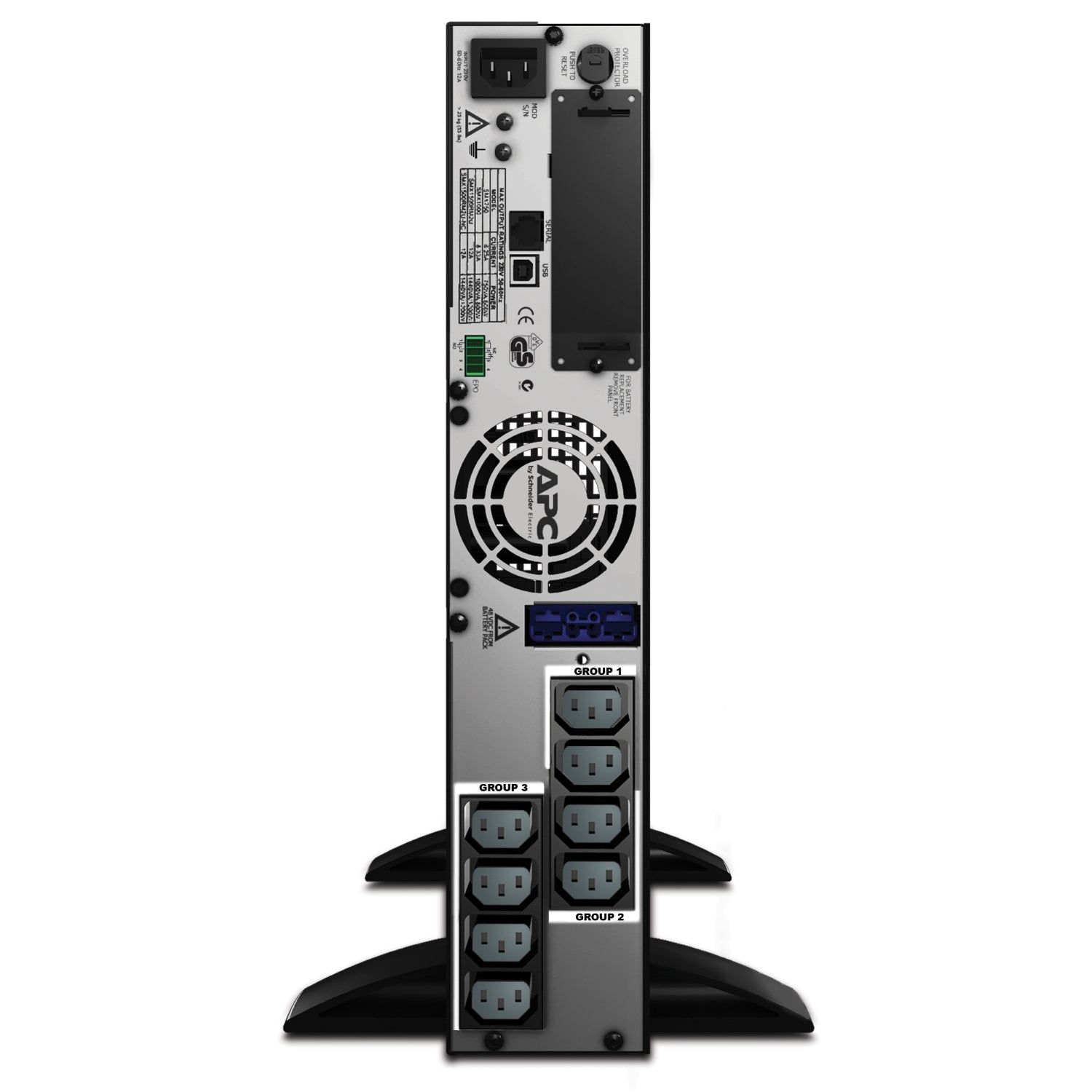

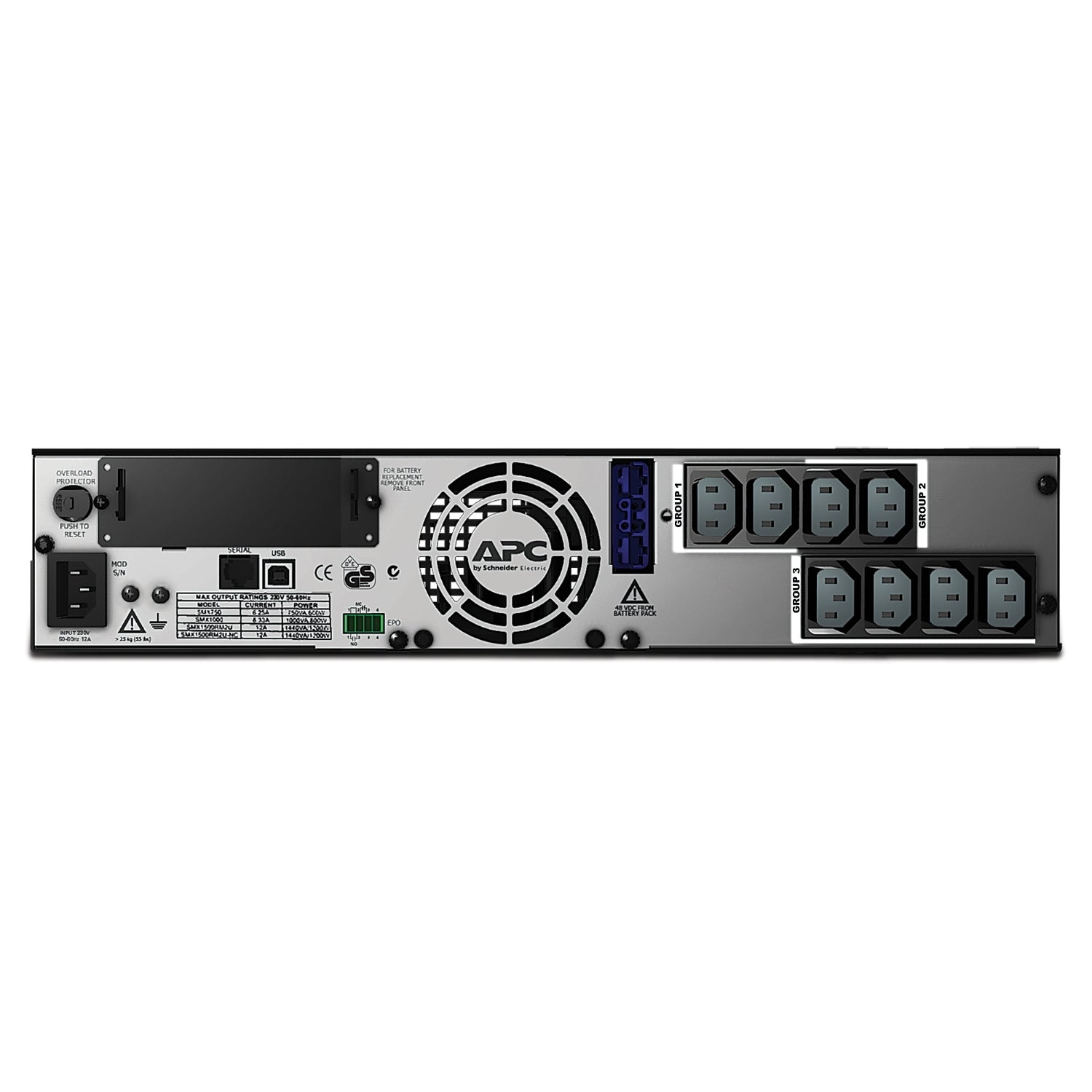

APC Smart-UPS SMX 1500VA 230V Rack/Tower (SMX1500RMI2U)

Maintain business certainty with intelligent and efficient network power protection for your network closets and server rooms.

The world’s most popular network and server UPS. Entry level to scaleable runtime solutions Smart-UPS are ideal for servers, point-of-sale, routers, switches, hubs, and other network devices.

The world’s most popular network and server UPS

APC™ award-winning Smart-UPS™ is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. Smart-UPS’ patented green mode provides extremely high efficiency at low, medium and high load levels making them ideal for multi-core or virtualized servers that have varying load consumption all while saving utility costs. Managed outlet groups allow segmented load control to power on or off your equipment in series as well as load shedding to preserve battery power for critical connected equipment or reboot a hung device without impacting other equipment. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms
Display rotates easily for use in or out of a rack.

High-frequency Design
Reduces size of (or eliminates) bulky transformers making installation even easier.

Low-Voltage models (2 - 3 kVA)
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA)
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off

PowerChute Business Edition For graceful UPS shutdown

PowerChute Business Edition software provides UPS management, safe system
shutdown, and innovative energy reporting capabilities. Energy usage, cost, and CO2 reporting provides a greater understanding of the energy consumed by IT equipment, enabling improved energy efficiency. Advanced analysis features help to identify the causes of potential power-related problems before they occur, ensuring the health of your protected equipment.

PowerChute Business Edition features:

• Graceful system shutdown
• Fault notifications
• Risk-assessment reporting
• Scheduled shutdowns
• Energy-usage reporting
• Centralized monitoring
• Recommended actions
• Battery status
• Outlet-aware shutdown
• Event and data logging
• Power-event summary
• Voltage analysis

PowerChute Network Shutdown

PowerChute Network Shutdown Edition software provides UPS management, safe system shutdown, and innovative energy reporting capabilities. Energy usage, cost, and CO2 reporting provides a greater understanding of the energy consumed by IT equipment, enabling improved energy efficiency. Advanced analysis features help to identify the causes of potential power-related problems before they occur, ensuring the health of your protected equipment.

PowerChute Network Shutdown features:

• Graceful network-based shutdown
• Sequenced server shutdown
• Integration with Vmware and Microsoft Hyper-V
• Support for virtual clusters
• Virtual machine migration / shutdown
• IPv6 support
• Virtual machine prioritization
• Command file integration
• Redundant and parallel UPS support
• Event logging
• HTTPS communications
• Scalable architecture for host of client systems

Specifications

Main Input Voltage	230 V
Main Output Voltage	230 V
rated power in W	1200 W
Rated power in VA	1500 VA
Input Connection Type	IEC 320 C14
output connection type	8 IEC 320 C13 2 IEC Jumpers
Number of rack unit	2U
Cable length	1.83 m
Number of cables	1
Battery type	Lead-acid battery
Provided equipment	CD with software Documentation CD Installation guide Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable

Batteries & Runtime

Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC115 action_new_window
Battery power in VAH	311 VAh runtime
Battery charger power	103 W rated
Battery option	SMX48RMBP2U 1 933 VAh SMX48RMBP2U 2 1555 VAh SMX48RMBP2U 3 2177 VAh SMX48RMBP2U 4 2800 VAh SMX48RMBP2U 5 3421 VAh

General

Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Extended run
Redundant	No

Physical

Colour	Black
Height	8.9 cm
Width	43.2 cm
Depth	49 cm
Net weight	24.82 kg
Mounting preference	Lower
Mounting mode	Rack-mounted
Two post mountable	0
USB compatible	Yes

Input

Switching current capacity	10 A
Input voltage limits	151...302 V adjustable 160...286 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing

Output

Harmonic distortion	Less than 5 %
Maximum configurable power in VA	1500 VA
Maximum configurable power in W	1200 W
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications	CE RCM VDE EAC
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental

Acoustic level	40 dBA
heat dissipation	133 Btu/h
Operating altitude	0...10000 ft
Ambient air temperature for operation	0…45 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0.00…15240.00 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %

Communications & Management

control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate	645 J
Noise suppression	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24.6 cm
Package 1 Width	58.9 cm
Package 1 Length	62 cm
Package 1 Weight	30 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	16
Package 2 Height	133 cm
Package 2 Width	100 cm
Package 2 Length	120 cm
Package 2 Weight	524 kg

Contractual warranty

Warranty	3 years repair or replace (excluding battery) and 2 years for battery
