A versatile UPS developed for unstable power conditions worldwide
Smart-UPSTM On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA,
Unity on 6 kVA – 10 kVA units.
High-efficiency “green mode”
Achieves 98 percent efficiency, which saves
utility and cooling costs without compromising
performance or reliability
Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate
information with ability to configure locally.
Intelligent battery management
Temperature-compensated charging extends life
and advanced algorithms recommend replacement
date. The UPS can inform user which batteries need
to be replaced and auto detect when additional
battery packs are added.
Built-in energy meter
Measures energy use and displays UPS
efficiency in various modes of operation for easy
Operate without battery
Ability to immediately protect equipment when
power returns after a complete discharge of
Three-year warranty on electronics
Additional year of warranty protection
for electronics provides peace of mind.
Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)
Remote monitoring and control of the UPS and
the environment via Ethernet connection while
freeing up the SmartSlotTM so customers can add
accessories for additional communication options.
Switched outlet group(s)
Ability to control a group of output load receptacles
independent from the main UPS. Enables:
- Rebooting hung device without cycling the entire UPS
- Sequenced turn ON/OFF
- Shedding of noncritical loads based on a variety of parameters (battery time,runtime remaining, and overload)
- Scheduled time OFF to conserve energy
Emergency power off
Remote UPS shutoff in the event of a fire or other
emergency. The UPS can accept normally open
(NO) or normally closed (NC) contacts.
Serial, USB, Ethernet, and SmartSlot for network
Modbus serial, USB PowerSummary, HTTP, SNMP,
1:1, 3:1 input hard-wire options
Product can be wired for 3-PH or 1-PH input
(230 V, 8 kVA, and 10 kVA models only).
Enables second input source to be connected to
UPS bypass (230 V, 8 kVA, and 10 kVA models only).
|Backup/Run Time (Full Load):||4 Minute|
|Typical Battery Recharge Time:||3 Hour|
|Product Type:||Dual Conversion Online UPS|
|Manufacturer Part Number:||SRT3000XLI|
|Manufacturer Website Address:||http://www.schneider-electric.com|
|Manufacturer:||Schneider Electric SA|

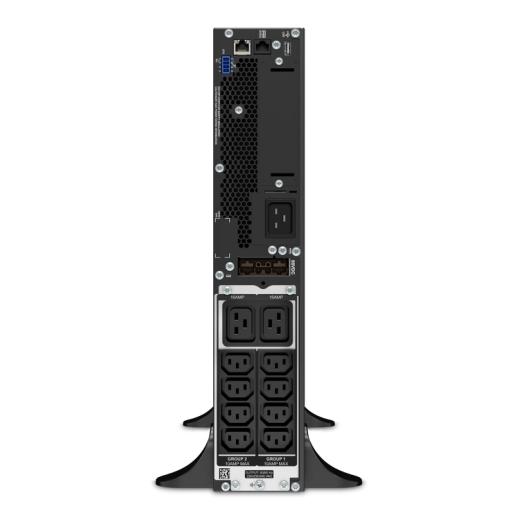

|Product Name:||Smart-UPS SRT 3000VA 230V|
|Product Line:||Smart-UPS On-Line|
|Brand Name:||APC by Schneider Electric|
|Weight (Approximate):||31.30 kg|
|Input Voltage:||230 V AC|
|Output Voltage:||230 V AC|
|Load Capacity:||3 kVA/2.70 kW|
|Receptacles:||2 x IEC 60320 C19|
|8 x IEC 60320 C13|
