Description

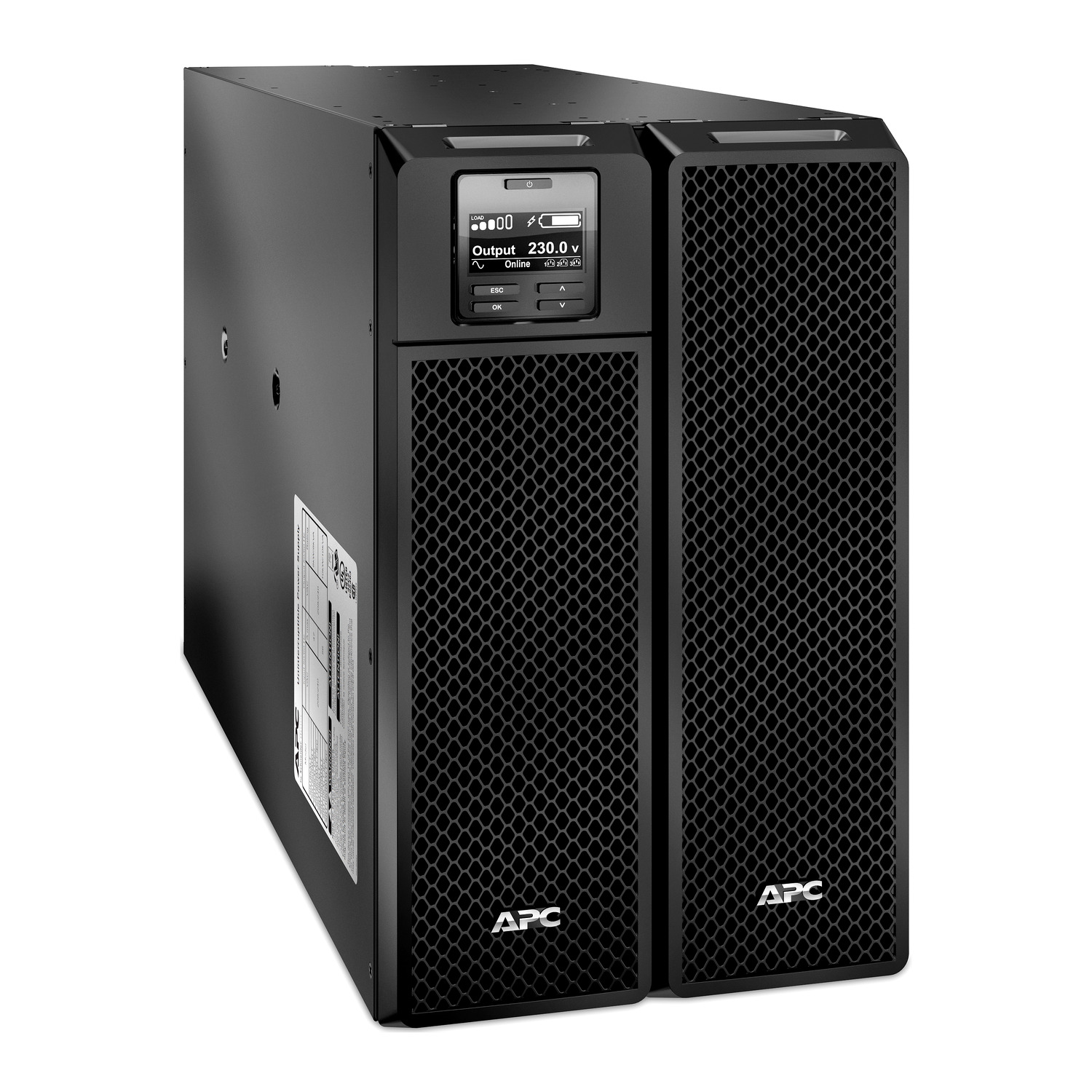

APC Smart-UPS SRT 8000VA 230V (SRT8KXLI)
A versatile UPS developed for unstable power conditions worldwide
Smart-UPSTM On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 1 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Standard features
Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units
High-efficiency “green mode”
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.
Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally
Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.
Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery
Three-year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.
SPECIFICATION
| Main Input Voltage | 230 V 400 V 3 phases |
|---|---|
| Other Input Voltage | 220 V 240 V 380 V 415 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 8000 VA |
| output connection type | 6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| battery type | Lead-acid battery |
| Provided equipment | CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Battery recharge time | 1.5 h |
| Number of battery replacement quantity | 2 |
| battery voltage | +/- 192 V (split battery referenced to neutral) |
| Battery charger power | 876 W rated |
| Battery power in VAH | 1728 VAh runtime |
| Battery life | 3…5 year(s) |
| Battery option | SRT192BP2 1 3456 VAh SRT192BP2 2 5184 VAh SRT192BP2 3 6912 VAh SRT192BP2 4 8640 VAh SRT192BP2 5 10368 VAh SRT192BP2 6 12096 VAh SRT192BP2 8 15552 VAh SRT192BP2 10 19008 VAh |
| Extended runtime | 1 |
| product web sub-family | High density |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 43.2 cm |
| Width | 26.3 cm |
| Depth | 71.5 cm |
| Net weight | 111.82 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E) |
| Input voltage limits | 100...275 V adjustable (half load) 173...476 V adjustable (half load) |
| Maximum configurable power in W | 8000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| Maximum configurable power in VA | 8000 VA |
| product certifications | CE EAC IRAM RCM VDE |
|---|---|
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1497 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 1 |
|---|---|
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Surge energy rate | 480 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46.1 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 100 cm |
| Package 1 Weight | 126.82 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
