Description

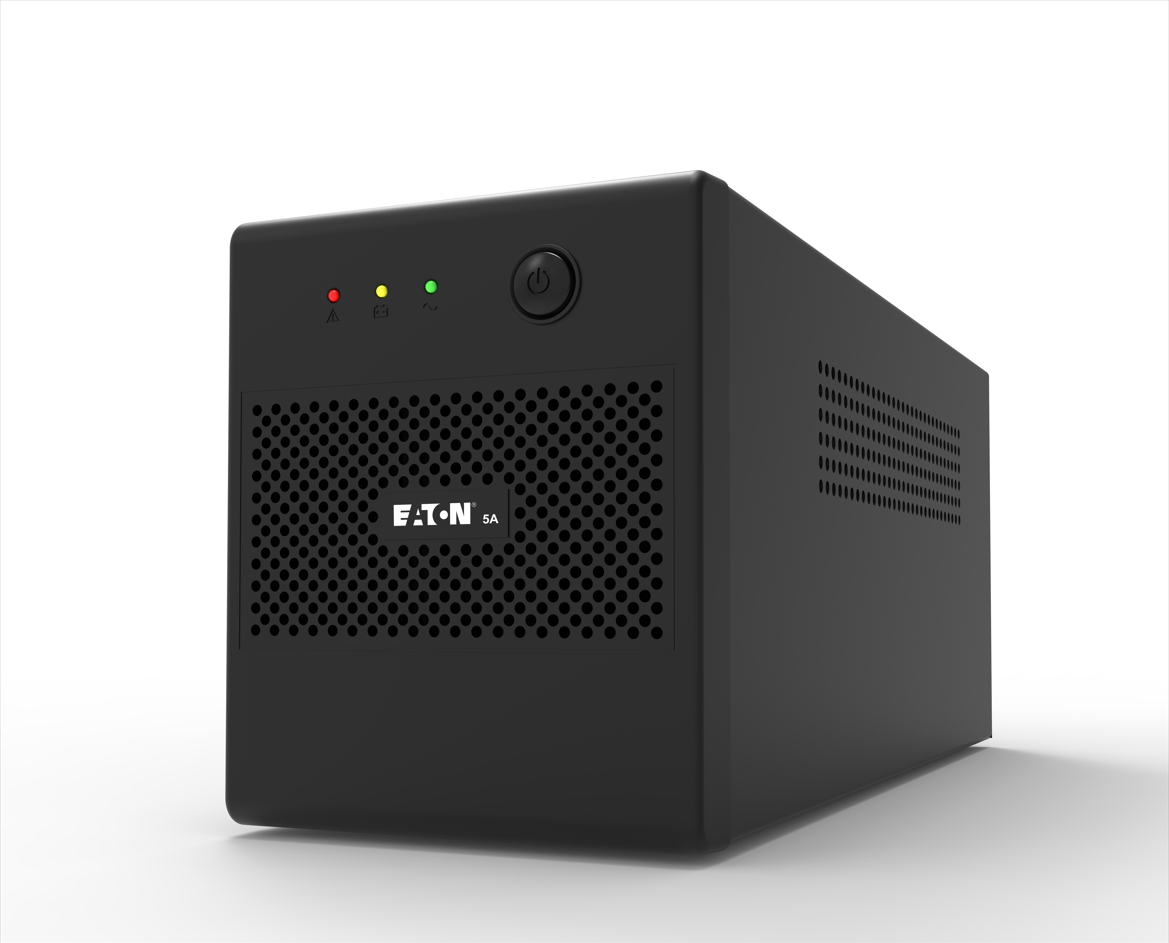

Eaton Line Interactive UPS 5A 1500VA
The Eaton 5A UPS is a single-phase line-interactive UPS, with power ratings from 700 - 2200 VA. The UPS is available in a tower form factor. 5A UPS includes surge protection for outlets and circuit breaker protection, providing additional protection measures for peace of mind. Eaton 5A UPS also comes with multiple outlet formats – Schuko, NEMA universal, Universal, for ease of connection.
Eaton Advantage series
Affordable and reliable line-interactive technology
Protect important equipment
With Automatic Voltage Regulation (AVR), Eaton 5A UPS can ride through under & over voltage without utilizing battery
High quality, reliable power
Compatible for use with Generator
Easy integration
Install Eaton 5A UPS anywhere thanks to its small size
|
Technical Specification |
5A700I |
5A900I |
5A1200I |
5A1500I |
5A2200I |
|
Rating (VA / W) |
700VA/360W |
900VA/480W |
1200VA/650W |
1500VA/900W |
2200VA/1200W |
|
Form factor |
Tower |
||||
|
Input Voltage range |
140 – 300 VAC |
||||
|
Frequency |
50 / 60 Hz |
||||
|
Output Voltage |
230 VAC |
||||
|
Battery Wave Form |
Stepped sine wave |
||||
|
Output backup socket |
DIN model: (2) Schuko outlets NEMA model: (4) NEMA universal outlets UNI model: (2) Universal outlets |
DIN model: (4) Schuko outlets NEMA model: (6) NEMA universal outlets UNI model: (4) Universal outlets |
|||
|
Surge protection |
Yes |
||||
|
Generator Compatible |
Yes |
||||
|
Mute by Power Key |
Yes |
||||
|
Circuit breaker |
Yes |
||||
