EATONSKU: 9210-6385
Price:
RM6,749.00 MYR

Shipping calculated at checkout

Stock:
Re-stocking soon
Contact us

Description

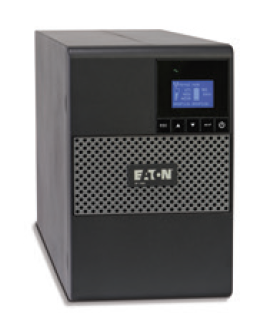

Eaton Line Interactive UPS 5P 1150i

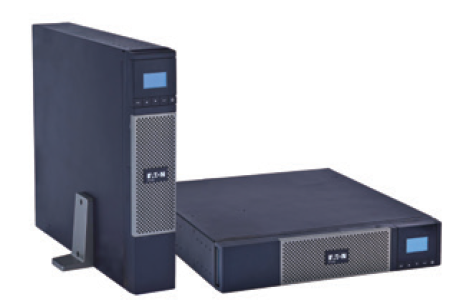

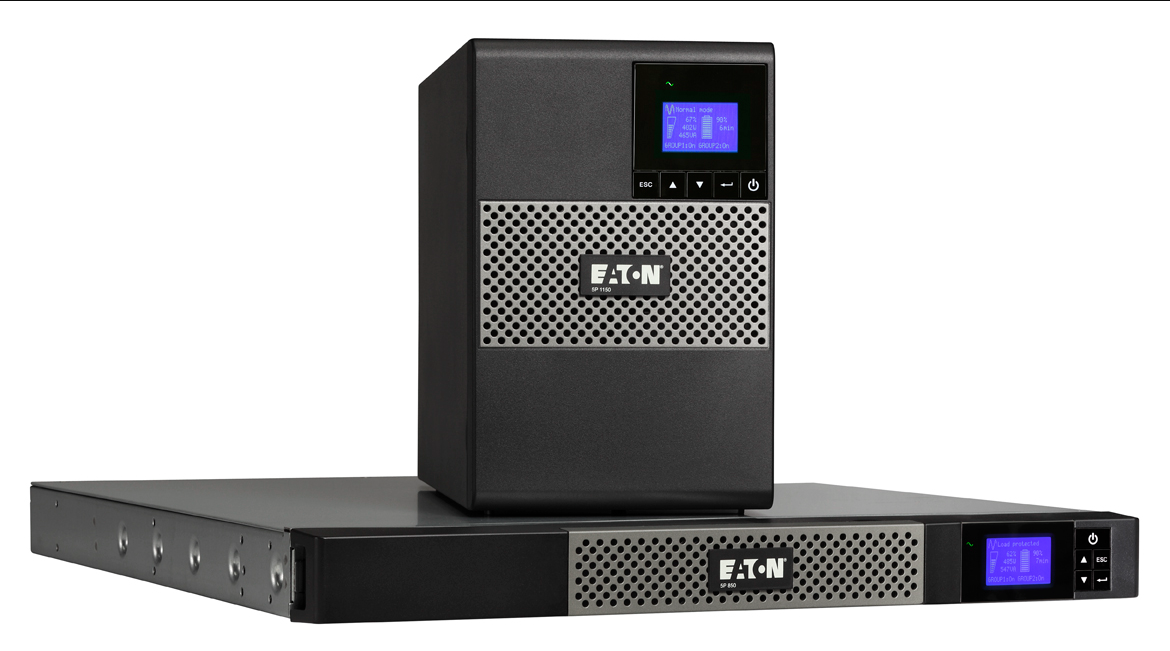

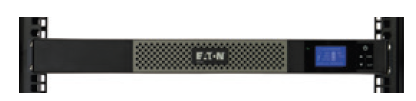

The Eaton 5P UPS is a single-phase line-interactive UPS, with power ratings from 650 - 1550 VA. The UPS is available in a tower or rack form factor. The optional network card (Network-M2) will provide a Gigabit Ethernet connection and enables secure UPS monitoring over HTTPS web browser interface, SNMP v1/v3 protocol and email alarms.

Graphical LCD

The new graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys.

Energy efficient

With an optimised electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs. The 5P can also meter energy consumption providing kWh values through the LCD and Eaton’s power management software.

Virtualisation-ready

With an optional Gigabit Network Card and Eaton’s Intelligent Power Manager® compatible with all major operating systems, Eaton’s 5P UPS seamlessly integrates into virtualisation software such as VMware and Hyper-V

GENERAL SPECIFICATIONS

PRODUCT NAME

Eaton 5P UPS

CATALOG NUMBER

5P1150I

UPC

743172042842

PRODUCT LENGTH/DEPTH

345 mm

PRODUCT HEIGHT

230 mm

PRODUCT WIDTH

150 mm

PRODUCT WEIGHT

11.12 kg

COMPLIANCES

CE Marked
TUV

CERTIFICATIONS

UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
cTUVus

PRODUCT SPECIFICATIONS

SPECIAL FEATURES
  • Automatic Voltage Regulation (AVR)
  • Energy efficient, reduce energy and cooling costs
  • Delivers clean sinewave output
  • 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • Fully integrates with Eaton Intelligent Power Manager software
  • 1 USB port + 1 serial port
  • Advanced Battery Management (ABM) technology to increase battery lifetime
  • Next-generation graphical LCD display
  • Hot swappable batteries
  • Remote reboot and runtime optimization thanks to 2 manageable outlet groups
  • Remote ON/OFF and remote Power OFF connectors

TYPE

UPS

TOPOLOGY

Line-interactive

FORM FACTOR

Tower

CONSTRUCTION TYPE

Free standing model

COLOR

Black/silver

ENCLOSURE

Black/silver

VA RATING

1150 VA

WATTAGE

770 W

RACK MOUNTING KIT

No

PACKAGE CONTENTS
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions

AUTO SHUTDOWN FUNCTION

Yes

PRIMARY FREQUENCY - MAX

70 Hz

PRIMARY FREQUENCY - MIN

47 Hz

INPUT CONNECTION

C14

INPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

NOMINAL FREQUENCY

50-60 Hz

INPUT FREQUENCY RANGE

47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

RECEPTACLE

(8) C13

NUMBER OF OUTPUTS C13

8

OUTPUT WAVEFORM

Sine wave

VOLTAGE

230V

OUTPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

FEED TYPE

1

VOLTAGE TYPE

AC

RUNTIME GRAPH

BATTERY MANAGEMENT

ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection

BATTERY REPLACEMENT

User replaceable

BATTERY RATING

12 V / 9 Ah

BATTERY TYPE

Lead-acid maintenance-free (replaceable)

EXTENDED BATTERY CAPABILITY

No

RUNTIME AT HALF LOAD

11.5 min

COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Dry contacts (2 outputs, optocoupler, RJ)

EXPANSION SLOTS

One slot for optional communication card

ETHERNET INTERFACE

No

INCLUDES NETWORK CARD

No

SOFTWARE COMPATIBILITY

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

USER INTERFACE

Multilingual graphical LCD display

TYPE OF INTERFACE

Other

POTENTIAL FREE SWITCH CONTACT

Yes

ALTITUDE

2000 m

BTU RATING

Online: 158

NOISE LEVEL

<40 dB at 1 meter

RELATIVE HUMIDITY

0-90% non-condensing

TEMPERATURE RANGE

0-90% non-condensing

INPUT VOLTAGE - MAX

294 V

INPUT VOLTAGE - MIN

150 V

OUTPUT VOLTAGE - MAX

240 V

OUTPUT VOLTAGE - MIN

200 V

SECONDARY FREQUENCY - MAX

60 Hz

SECONDARY FREQUENCY - MIN

50 Hz

BATTERY QUANTITY

2

EFFICIENCY

97

INPUT VOLTAGE RANGE

160-294 V (adjustable to 150 V-294 V)

OUTPUT FREQUENCY

50/60 Hz

OUTPUT POWER FACTOR

0.7

OUTPUT VOLTAGE RANGE

230 V (+6%/-10%)

PHASE (INPUT)

1

PHASE (OUTPUT)

1

RUNTIME AT FULL LOAD

4 min
