Description
Estimated Delivery: 4 - 7 Business days
Note:
- Product images are for illustrative purposes only and may differ from the actual product.
- Please check the specification of the product before placing an order.

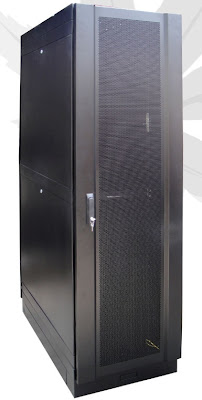

Features & Specifications
- Internal system base with vented roof
- 2.0mm thickness mertal frame
- Lockable honeycomb perforated front door c/w push lock
- Lockable honeycomb perforated rear swing door
- Lockable derachable side panels with latch
- 19"server compatible mounting elements
- 2.0mm thickness panel mounting member with “U” marking
- 40 sets M6 caged nuts & screws
- Heavy duty castor wheels
- Adjustable feet
- 4 ball bearing fans with fan tray
- 2 equipment trays
- Side vertical metal cable management panel
- Power Distribution Unit(PDU)(PS8001/3205)
- Finished high quality epoxy powder coating(Black)
- Support weight up to 1500kg
| Model | Capacity (U) | Height (mm) | Width (mm) | Depth (mm) | Approx.Weight (kg) | PDU (nos) |
| X1580FS | 15 | 850 | 600 | 800 | 93 | 5 |
| X1880FS | 18 | 980 | 600 | 800 | 97.5 | 5 |
| X2480FS | 24 | 1250 | 600 | 800 | 105.5 | 5 |
| X2880FS | 28 | 1420 | 600 | 800 | 111.5 | 5 |
| X3380FS | 33 | 1650 | 600 | 800 | 120 | 12 |
| X3780FS | 37 | 1830 | 600 | 800 | 125 | 12 |
| X4280FS | 42 | 2050 | 600 | 800 | 133.5 | 12 |
| X42100FS | 42 | 2050 | 600 | 1000 | 143 | 12 |
| X4280TR | 42 | 2050 | 800 | 800 | 153 | 12 |
| X42100TR | 42 | 2050 | 800 | 1000 | 163 | 12 |
