Description

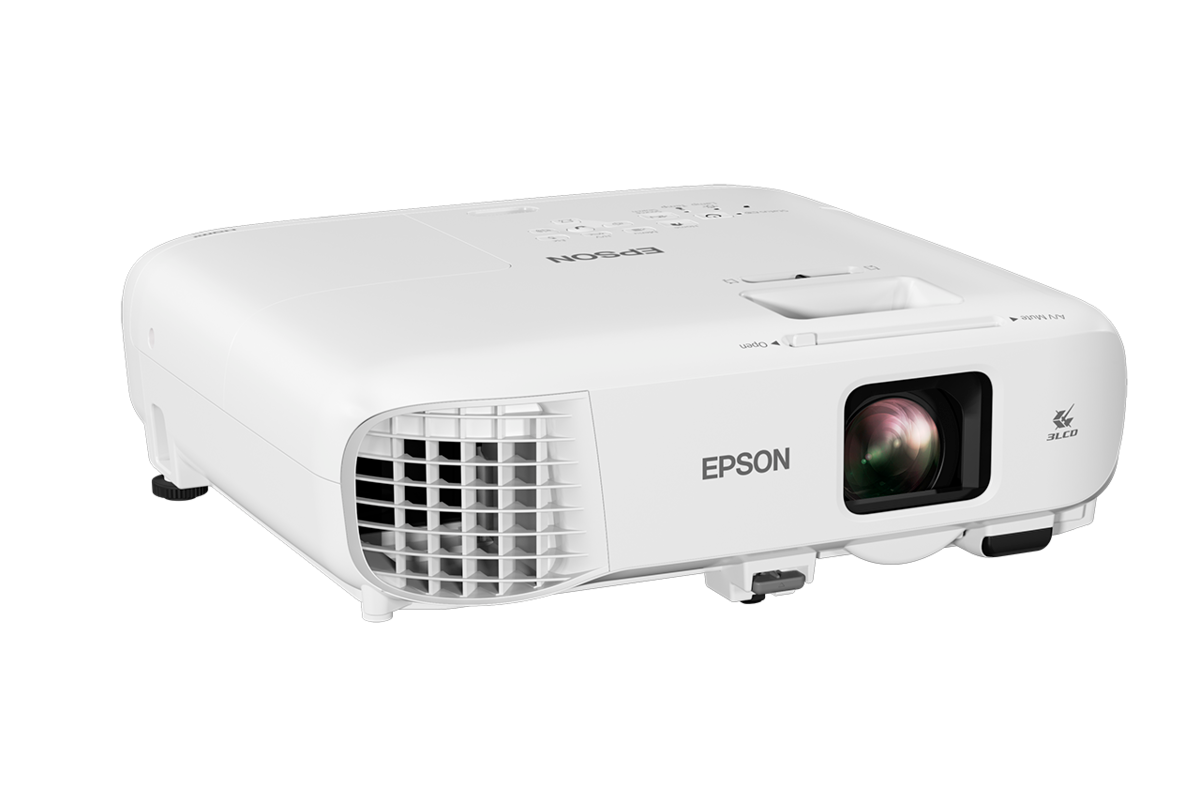

Epson EB-982W WXGA 3LCD Projector (V11H987052)
Bring powerful projection to your classroom with the advanced EB-982W projector. The perfect addition to any learning environment, this ultra bright, 4,200-lumen projector enhances lesson plans and promotes collaboration with vibrant, widescreen displays. Featuring an integrated Moderator function with iProjection, the EB-982W allows up to 50 users to connect and share content from laptops or mobile devices. Designed with durability in mind, this premium projector provides a long lamp life up to 17,000 hours in ECO Mode. Plus, with a 1.6 optical zoom, a 16 W speaker, a microphone input, and dual HDMI ports, creating dynamic, high-definition displays has never been easier.
SPECIFICATION
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)
Brightness2:
White Light Output (Normal/Eco):4,200 lm
Colour Light Output:4,200 lm
Connectivity:
USB Interface:USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Network:Wireless: 1 (ELPAP11)
Wired LAN: 1
Wired LAN: 1
Analog Input:Composite: 1 RCA
D-Sub 15pin: 2
D-Sub 15pin: 2
Digital Input:HDMI: 2
Output Terminal:D-Sub 15Pin: 1
Audio Input:Stereo Mini: 2
2RCA (White & Red): 1
2RCA (White & Red): 1
Audio Output:Stereo Mini Jack: 1
Mic I/O:Stereo Mini: 1
Control I/O:RS-232C: 1
Contrast Ratio:
Contrast Ratio:16,000:1
Screen Size (Projected Distance):
Standard Size:Tele: 29” to 280” [1.40 to 13.71 m]
Wide: 29” to 280” [0.85 to 8.45 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)
Quick Corner:Yes
Operating Temperature:
Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:0 – 3,048 m <0 – 10,000 ft>
Start-Up Period:
Start-Up Period:Up to 6 seconds, Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Direct Power On/Off:
Direct Power On/Off:Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):309 x 90 x 282 mm
Weight:
Weight:Approx. 3.1 kg
Air Filter:
Type:High Efficiency Filter
Maintenance Cycle:10,000 / 20,000 hours*3
Fan Noise:
Fan Noise (Normal / Eco):37dB / 28dB
Power:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz
Projectors Facets:
Resolution, Projectors Facets:WXGA
Contrast Ratio, Projectors Facets:16,000:1
Brightness Range Lumens, Projectors Facets:4001
Features, Projectors Facets:Wifi
Quick Corner
Quick Corner
Laser / Lamp, Projectors Facets:Lamp
Optional Wireless & Built In Lan Specifications:
Supported Speed for each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2
Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
Access Point: OPEN, WPA2-PSK (AES)
Specifications of Main Parts:
LCD:Size:0.59” (C2fine)
Native Resolution: WXGA
Lightsource:Life (Normal / Eco): 6,500 / 17,000 hours
Type: 230W UHE
Type: 230W UHE
Aspect Ratio:16:10
Projection Lens:Zoom Ratio: 1 – 1.6
Focal Length: 18.20 – 29.20 mm
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51-1.99
Throw Ratio: 1.38 – 2.24 (Wide to Tele)
Focal Length: 18.20 – 29.20 mm
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51-1.99
Throw Ratio: 1.38 – 2.24 (Wide to Tele)
