Description

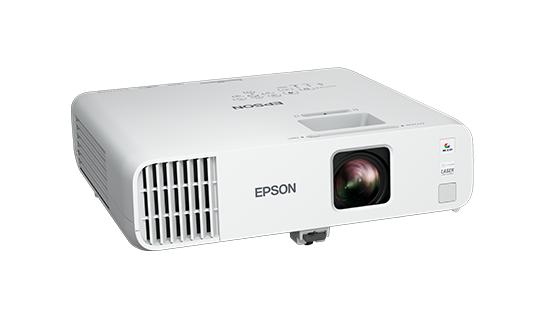

Epson EB-L200F Full HD Standard-Throw Laser Projector with Built-in Wireless (V11H990052)
Project vivid, colorful, impactful images up to 500" with EB-L200F Standard-Throw laser projector. This 4,500-lumen, Full HD* projector delivers bright, easy-to-read images from nearly anywhere in the room, and it offers built-in split screen to create an even more immersive and engaging experience. Designed with flexibility and convenience in mind, the EB-L200F provides built-in wireless and Miracast® support and a long-lasting virtually maintenance-free 20,000-hour laser light source with no lamps to replace.
SPECIFICATION
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system
Specifications of Main Parts:
LCD:Size: 0.62” (C2Fine)
Resolution: Full HD (1080p)*
Lightsource:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Projection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.77
Focal Length: 18.2 – 29.2mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.33 – 2.16
F-Number: 1.49 – 1.77
Focal Length: 18.2 – 29.2mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.33 – 2.16
Connectivity:
Network:Wireless:
Built-in x 1
Optional x 1 (using optional ELPAP11)
Wired Lan:
RJ45 x 1 (100Mbps)
Analog Input:D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)
Composite RCA x 1 (Yellow)
Digital Input:HDMI: 2 (HDCP 2.2)
Analog Output Terminal:D-Sub 15Pin: 1 (Black)
Audio Input:RCA: 1 (White, Red)
Stereo Mini Jack: 2
Stereo Mini Jack: 2
Audio Output:Stereo Mini Jack: 1
Control I/O:RS-232C: D-Sub 9pin x 1
Others:USB Type A: 1 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings, Document Camera)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Mic I/O: Stereo Mini x 1
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Mic I/O: Stereo Mini x 1
Contrast Ratio:
Contrast Ratio:Over 2,500,000 : 1
Screen Size (Projected Distance):
Standard Size:60” screen @ 172cm
Zoom : Wide:40” to 500” screen (114 – 1,461cm)
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30°
Quick Corner:Yes (Manual
Operating Temperature:
Single Use:0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation
Multi-projection Use:0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [32 °F - 95 °F ; 20% to 80% Humidity, No Condensation Over 2,286 m (7,500 ft): 0 - 30 °C [32 °F - 86 °F] ; 20%-80% Humidity, No Condensation
Operating Altitude:
Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Start-Up Period:
Start-Up Period:Less than 8 seconds, Warm-up Period: 30 seconds
Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period:
Cool Down Period:Instant Off
Internal Speaker(s):
Sound Output:16W Monoaural
Direct Power On/Off:
Direct Power On/Off:Yes
Weight:
Weight:Approx. 4.1kg
Air Filter:
Type:Electrostatic FilterMaintenance Cycle:20,000 hours*5
Fan Noise:
Fan Noise (Normal / Eco):36dB / 27dB
Dimension Excluding Feet:
Dimension Excluding Feet (D x W x H):299 x 325 x 90 mm
Optional Wireless & Built In Lan Specifications:
Supported Speed for each Mode:Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*3, IEEE 802.11g (2.4GHz): 54Mbps*3 IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*3, IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3
Wireless LAN Security:Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Supported Mode:Infrastructure, Access Point (Wi-Fi Direct)
Brightness:
White Light Output (Normal / Eco):4,500lm / 3,150lm
Colour Light Output:
4,500lm
Image:
Noise Reduction:Yes
Super-Resolution:
Yes
Detail Enhancement:
Yes
Power Consumption (220-240V):
Lamp On (Normal/Eco):254W / 193W
Standby:
2.0W / 0.5W (Network On / Off)
Projectors Facets:
Resolution, Projectors Facets:FullHD
Contrast Ratio, Projectors Facets:
Over 2,500,000:1
Brightness Range Lumens, Projectors Facets:
4001
Features, Projectors Facets:
Wifi
Screen Mirroring
Quick Corner
Screen Mirroring
Quick Corner
Laser / Lamp, Projectors Facets:
Laser
