Description

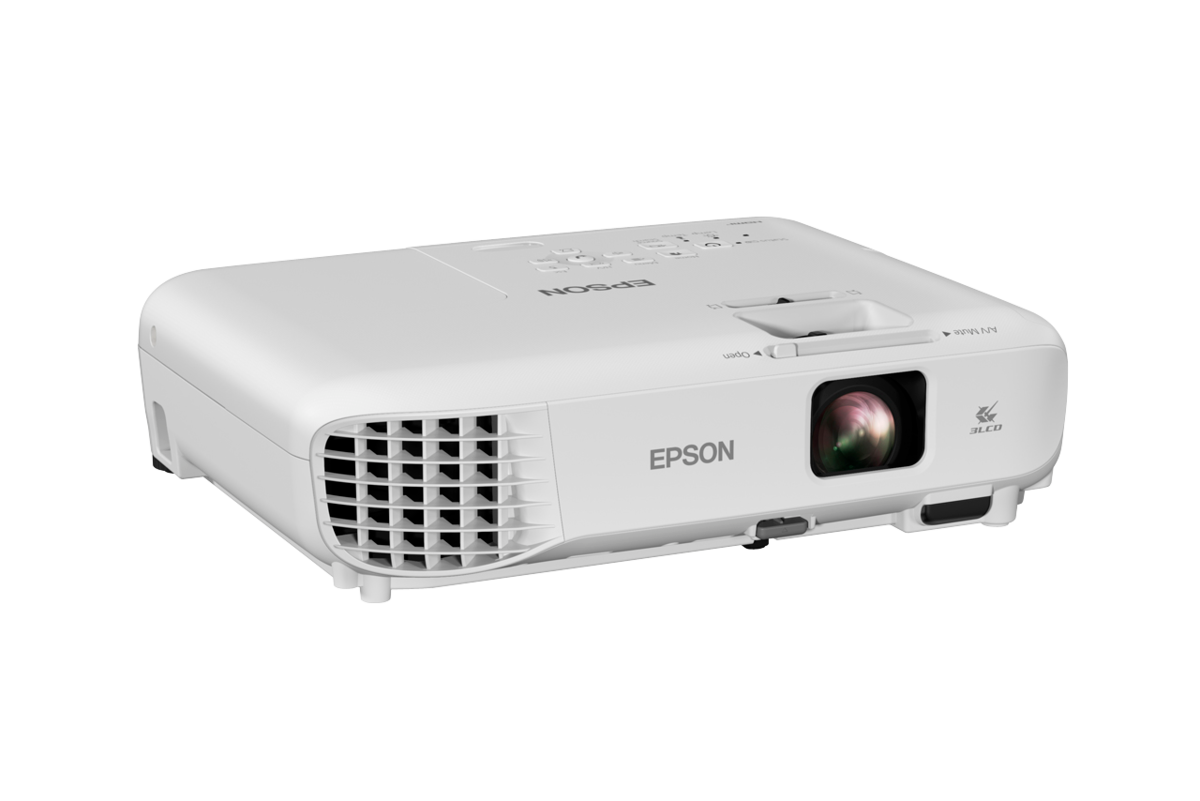

Epson EB-X06 XGA 3LCD Projector (EB-X06)
Get astounding classroom projection at an affordable price point with the EB-X06 projector. Featuring advanced 3LCD technology, this ultra bright, 3,600-lumen projector delivers vibrant, true-to-life images and native XGA resolution. Designed specifically for classroom environments, the EB-X06 eases engagement and enriches lesson plans with HDMI connectivity and a built-in 2 W speaker. Built to last, this durable projector provides a long lamp life of 12,000 hours in ECO Mode, plus convenient installation and positioning flexibility for easy projection from anywhere in the classroom.
SPECIFICATION
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)
Brightness2:
White Light Output (Normal/Eco):3,600 lm
Colour Light Output:3,600 lm
Connectivity:
USB Interface:USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network:Wireless: Optional (ELPAP11)
Analog Input:Composite: 1 RCA
D-Sub 15pin: 1
Digital Input:HDMI: 1 (MHL not supported)
Audio Input:2 RCA: 1
Contrast Ratio:
Contrast Ratio:16,000:1
Screen Size (Projected Distance):
Standard Size:Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)
Quick Corner:Yes
Operating Temperature:
Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:0 – 3,048 m <0 – 10,000 ft>
Start-Up Period:
Start-Up Period:Up to 6 seconds, Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Direct Power On/Off:
Direct Power On/Off:Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):302 x 77 x 234 mm
Weight:
Weight:Approx. 2.5 kg
Air Filter:
Type:High Efficiency FilterMaintenance Cycle:6,000 / 12,000 hours*3
Fan Noise:
Fan Noise (Normal / Eco):37dB / 28dB
Power:
Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz
Projectors Facets:
Resolution, Projectors Facets:XGA
Contrast Ratio, Projectors Facets:16,000:1
Brightness Range Lumens, Projectors Facets:2000
Features, Projectors Facets:Wifi
Quick Corner
Laser / Lamp, Projectors Facets:Lamp
Optional Wireless & Built In Lan Specifications:
Supported Speed for each Mode:IEEE 802.11a (5GHz): 54Mbps*2
Wireless LAN Security:Access Point: OPEN, WPA2-PSK (AES)
Optional Wireless Specifications:
Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2
Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
Specifications of Main Parts:
LCD:Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)
Lightsource:Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours
Aspect Ratio:4:3
Projection Lens:F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)
