Description

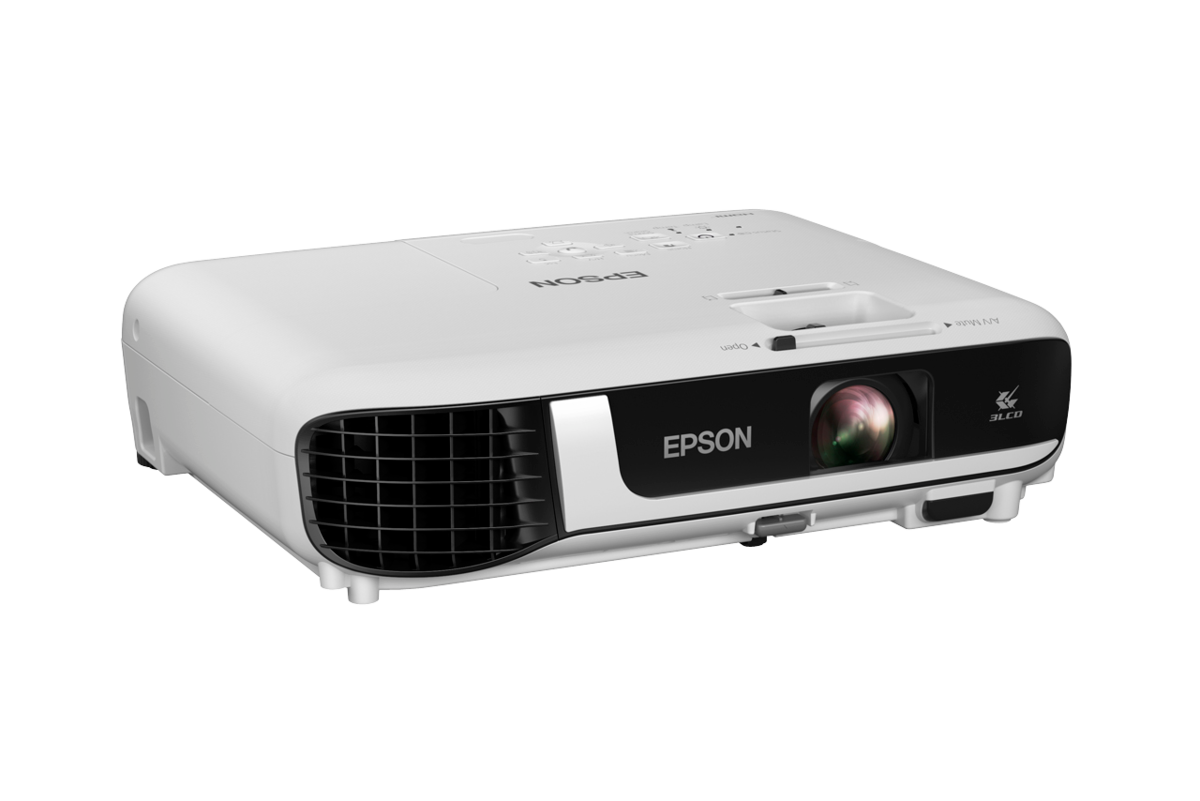

Epson EB-X51 XGA 3LCD Projector (V11H976052)
Create engaging classroom displays with the dynamic EB-X51 projector. Offering advanced 3LCD technology, this ultra bright projector delivers eye-catching, 3,800-lumen displays with native XGA resolution. Designed to enhance in-class collaboration, the EB-X51 projects from smart devices and laptops, and features a built-in Moderator function that allows up to 50 users to connect to the display simultaneously 3(using iprojection). Built to last, this durable projector provides a long lamp life of up to 12,000 hours in ECO Mode, plus HDMI connectivity and convenient positioning flexibility for easy projection from anywhere in the classroom.
SPECIFICATION
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)Brightness2:
White Light Output (Normal/Eco):3,800 lm
Colour Light Output:3,800 lm
Connectivity:
USB Interface:USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network:Wireless: Optional (ELPAP11
)Analog Input:Composite: 1 RCA
D-Sub 15pin: 1
D-Sub 15pin: 1
Digital Input:HDMI: 1 (MHL not supported)
Audio Input:2 RCA: 1
Contrast Ratio:
Contrast Ratio:16,000:1Screen Size (Projected Distance):
Standard Size:Tele: 30” to 300” [1.07 to 10.95 m]Wide: 30” to 300” [0.89 to 9.12 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)
Quick Corner:Yes
Operating Temperature:
Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>(20% – 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:0 – 3,048 m <0 – 10,000 ft>Start-Up Period:
Start-Up Period:Up to 6 seconds, Warm-up Period: 30 secondsCool Down Period:
Cool Down Period:Instant OffDirect Power On/Off:
Direct Power On/Off:YesDimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):302 x 77 x 234 mmWeight:
Weight:Approx. 2.5 kgAir Filter:
Type:High Efficiency Filter
Maintenance Cycle:6,000 / 12,000 hours*3
Fan Noise:
Fan Noise (Normal / Eco):37dB / 28dBPower:
Power Supply Voltage:100 - 240 V AC ±10%, 50/60 HzProjectors Facets:
Resolution, Projectors Facets:XGA
Contrast Ratio, Projectors Facets:16,000:1
Brightness Range Lumens, Projectors Facets:2000
Features, Projectors Facets:Wifi
Quick Corner
Quick Corner
Laser / Lamp, Projectors Facets:Lamp
Optional Wireless Specifications:
Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2
Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
Access Point: OPEN, WPA2-PSK (AES)
Specifications of Main Parts:
LCD:Native Resolution: XGA (1024 x 768)Size: 0.55” (C2fine)
Lightsource:Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours
Life (Normal / Eco): 6,000 / 12,000 hours
Aspect Ratio:4:3
Projection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.72
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio: 1.48 – 1.77 (Wide to Tele)
F-Number: 1.49 – 1.72
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio: 1.48 – 1.77 (Wide to Tele)
