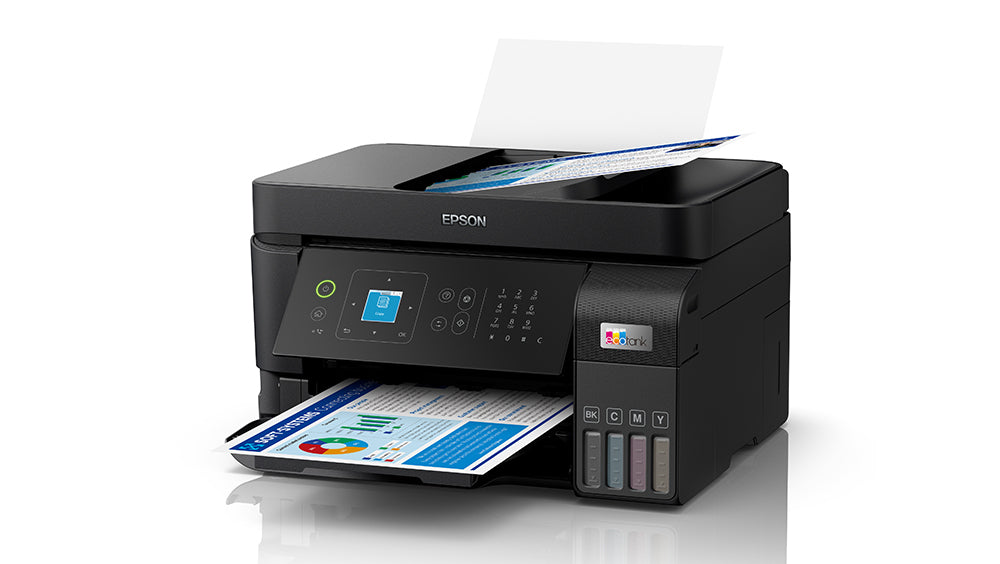

Epson EcoTank L5590 Ink Tank Printer (L5590)

Productivity meets Durability
With PrecisionCore Printhead enabled, L5590 has faster printing speed at 15/8 ipm. Improved mechanical design on parts that support paper feed-out contributes to longer product life — 2 years or 50,000 pages¹.

Epson Heat-Free Technology
Achieve high speed printing at lower power consumption with Epson Heat-Free Technology as no heat is required during the ink ejection process.

Sustainability in Mind
With hardware made from 30% recycled plastic², utilising 84% less consumables compared to ink cartridge models³ and over 80% recycled cardboard packaging, carbon
footprint is minimised.

Superb Savings & High  Page Yield
Don’t compromise on cost as you print. With EcoTank L5590, you’ll be able to save costs as each set of bottle inks has an ultra-high yield of up to 7,300 pages⁴

Print with Ease
Download Epson Smart Panel app to mobile devices for direct access to functions such as power On/Off remotely, print, scan and copy while monitoring the printer's operation.

Space-saving Design, Spill-free Refilling
Compact and sleek, the ink tank design is integrated into the printer to allow the printer to have a small footprint. Additionally, the unique bottle nozzle enables spill-free and error-free refilling.

Quality That Shines. Value That Lasts.
Epson genuine ink bottles are formulated to deliver outstanding high-volume print quality with EcoTank printers. Every bottle is individually sealed to ensure the purity of ink and comes with a smart tip designed for mess-free refills. Choose Epson genuine ink bottles to enjoy lasting quality with your printer and low printing costs.

Epson Warranty for Peace of Mind
Enjoy warranty coverage of up to 2 years or 50,000 prints, whichever comes first, for maximum value from your printer and freedom from worries over its maintenance. Epson’s warranty includes coverage of printhead, which is most important for a printer designed for high volume printing.



SPECIFICATION

Printer Type:

Printer Type: Print, Scan, Copy, Fax with ADF



Printing Technology:

Printer Language: ESC/P-R, ESC/P Raster

Print Direction: Bi-directional printing

Technolgy: PrecisionCore Printhead

Nozzle Configuration: 400 x 1 nozzles Black, 128 x 1 nozzles per Colour (Cyan, Magenta, Yellow)

Minimum Droplet Size: 3.3 pl

Maximum Resolution: 4800 x 1200 dpi (with Variable-Sized Droplet Technology)

Automatic 2-sided Printing: No



Print Speed:

Photo Default - 10 x 15 cm / 4 x 6 " ^*2:Approx. 69 sec per photo (Border) / 90 sec per photo (Borderless)

Draft, A4 (Black / Colour):Up to 33.0 ppm / 20.0 ppm

ISO 24734, A4 Simplex (Black / Colour):Simplex: Up to 15.0 ipm / 8.0 ipm

First Page Out Time from Ready Mode (Black / Colour):Approx. 10 sec / 16 sec



Copying:

Maximum Copies from Standalone:99 copies

Maximum Copy Resolution:600 x 600 dpi

Maximum Copy Size: Legal

Copy Quality: Standard / High

ISO 29183, A4 Simplex Flatbed (Black / Colour):Up to 10.8 ipm / 5.5 ipm

ISO 29183, A4 ADF (Black / Colour):Approx. 60 sec / 82 sec



Scanning:

Scanner Type: Flatbed colour image scanner

Sensor Type: CIS

Optical Resolution:1200 x 2400 dpi

Maximum Scan Area:216 x 297 mm

Scanner Bit Depth (Colour):48-bit input, 24-bit output

Scanner Bit Depth (Grayscale):16-bit input, 8-bit output

Scanner Bit Depth (Black & White):16-bit input, 1-bit output



Scan Speed:

Scan Speed (Flatbed / ADF (Simplex)):200dpi, Black: 12 sec / Up to 4.5 ipm
200dpi, Colour: 29 sec / Up to 4.5 ipm



ADF Specifications:

Support Paper Thickness: 64 – 95 g/m

Paper Capacity: 30 sheets



Fax Function:

Type Of Fax: Walk-up Black-and-White and Colour Fax Capability

Receive Memory / Page Memory:1.1 MB, Page memory up to 100 pages

Error Correction Mode: ITU-T T.30

Fax Speed (Data Transfer Rate):Up to 33.6 kbps, Approx. 3 sec/page

Fax Resolution: Up to 200 x 200 dpi

Transmission Paper Size (Flatbed): Letter, A4

Transmission Paper Size (ADF): A4, Letter, 8.5 x 13'', Legal, Oficio 9, Mexico-Oficio, Indian-Legal

Receiving Paper Size: A4, Letter, Legal

Speed Dial / Group Dial: Up to 100 numbers, 99 groups

Fax Features: PC Fax (Transmission / Receive), Automatic Redial, Address book, Broadcast Fax (Mono Only), Transmit Reservation, Polling Reception



Paper Handling:

Number of Paper Trays: 1

Standard Paper Input Capacity: Up to 100 sheets of Plain Paper (80 g/m²), 20 sheets of Premium Glossy Photo Paper

Output Capacity: Up to 30 sheets of Plain Paper (80 g/m²), Up to 20 sheets of Premium Glossy Photo Paper

Maximum Paper Size: 215.9 x 1200 mm (8.5 x 47.24")

Paper Feed Method: Friction feed

Paper Size: A4, A5, A6, B5, B6, 100 x 148 mm, Indian-Legal (215 x 345 mm), Letter, 8.5 x 13", Legal 8.5 x 14",3 x 5", 4 x 6", 5 x 7", Envelopes #10, DL, C6

Print Margin: 0 mm top, left, right, bottom via custom settings in printer driver



Mobile and Cloud Solutions:

Epson Connect Features: Epson iPrint, Epson Email Print, Remote Print Driver

Other Mobile Solutions: Apple AirPrint, Mopria Print Service, Epson Smart Panel



Supported OS and Applications:

Operating System Compatibility:Windows XP / XP Professional / Vista / 7 / 8 / 8.1 / 10
Windows Server 2003 / 2008 / 2012 / 2016 / 2019
Only printing functions are supported for Windows Server OS
Mac OS X 10.6.8 or later



Noise Level:

PC Printing/ Premium Glossy Photo Paper Best Photo:Sound Power (Black / Colour) 5.3 / 5.3 B(A),
Sound Pressure (Black / Colour) 38 / 39 dB(A)

PC Printing / Plain Paper Default^*4:Sound Power (Black / Colour) 6.7 / 6.0 B(A),
Sound Pressure (Black / Colour) 54 / 47 dB(A)



Dimensions and Weight:

Dimensions (W x D x H):375 x 347 x 237 mm

Weight:5.2 kg



Consumables:

Black Ink Bottle:Page Yield^*5: 4,300 Pages
Order Code: 003

Cyan Ink Bottle:Page Yield^*5: 7,300 Pages (Composite Yield)
Order Code: 003

Magenta Ink Bottle:Page Yield^*5: 7,300 Pages (Composite Yield)
Order Code: 003

Yellow Ink Bottle:Page Yield^*5: 7,300 Pages (Composite Yield)
Order Code: 003

Maintenance Box:C12C934461



Electrical Specifications:

Rated Voltage:AC 220 – 240 V

Rated Frequency:50 – 60 Hz

Operating:12 W

Sleep:0.9 W

Power Off:0.2 W

Standby:7.1 W



Interface:

USB:USB 2.0

Network: Ethernet, Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct

Network Protocol: TCP/IPv4, TCP/IPv6

Network Management Protocols: SNMP, HTTP, DHCP, APIPA, PING, DDNS, mDNS, SLP, WSD, LLTD



Printer Software:

Operating System Compatibility:Windows XP SP3 / XP Professional x64 SP2 / Vista / 7 / 8 / 8.1 / 10 / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022
Only printing and scanning functions are supported for Windows Server OS
Mac OS X 10.9.x or later



Control Panel:

LCD Screen:1.44" Colour LCD Panel
