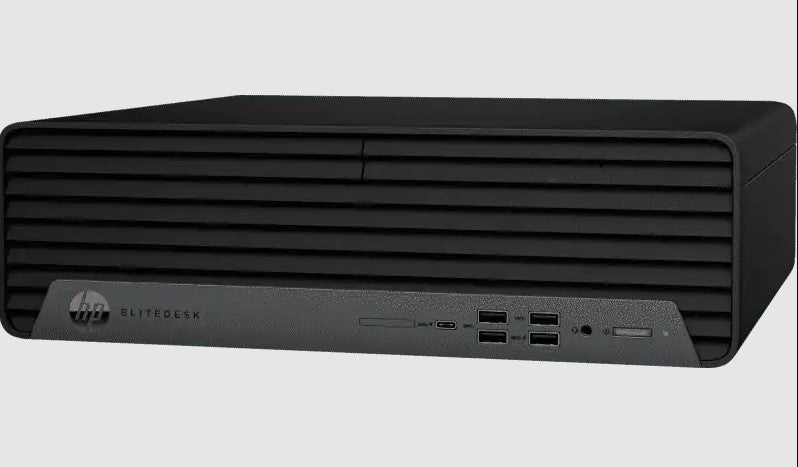

HP EliteDesk 800 G6 i5 10500 /8GB / 1TB HDD ( Small Form Factor )



The redesigned HP EliteDesk 800 Small Form Factor delivers high performance and broad expandability in a compact business-class SFF PC. Featuring powerful components, and strong security, this small PC handles big workloads.

Lead with power and performance

High-performance users will enjoy highly responsive performance with a 10th Gen Intel® Core™ processor.

Expansion that extends your investment

The HP EliteDesk 800 SFF has enormous expandability with five bays and four full-height slots. Plus, there are three additional M.2 slots, and 11 USB ports.

Work with peace of mind

Security features from HP work together to create an always-on, always-acting, resilient defense. From the BIOS to the browser, above and below the OS, these constantly evolving solutions help protect your PC from threats.

Built for the changing workplace

Get the power of the HP EliteDesk 800 SFF with whisper quiet operation from the HP Run Quiet Design that today’s smaller workspaces require.



Specification



Form Factor	Small Form Factor
Operating System	Windows 10 Pro 64
Processor	CPU I Core i5-10500 3.1GHz 6C65W
Memory	8GB (1x8GB) DDR4 2666 DIMM RAM
Hard Drive	1TB 7200RPM 3.5in SATA HDD
Optical Drive	HP 9.5 mm Slim DVD-Writer
Graphics	Intel® UHD Graphics 630
Wireless LAN	- NA -
Warranty (Parts/Labor/Onsite)	3.3.3
Monitor	HP P19v G4
Chipset	Intel® Q470 PCH-H– vPro
Bays	(1) 9mm Slim Optical Disc Drive (ODD); (1) SD Card Reader; (1) 2.5" Internal Storage Drive; (2) 3.5" Internal Storage Drive
Internal Slots and Ports	(1) M.2 PCIe x1 2230 (for WLAN) (2) M.2 PCIe x4 2280/2230 Combo (for storage); (2) PCI Express v3.0 x1; (1) PCI Express v3.0 x16 (wired as x4); (1) PCI Express v3.0 x16 (up to 75W)
Audio	Integrated - CConexant CX20632
Wireless LAN	NA
Communications LAN	Intel® I219-LM Gigabit Network Connection LOM (standard)
Rear I/O ports & connectors	Front: (2) Type-A SuperSpeed USB 5 Gbps signaling rate port (1fast charging); (2) Type-A SuperSpeed USB 10 Gbps signaling rate port; (1) Type-C® SuperSpeed USB 10 signaling rate Gbps port; (1) Universal Audio Jack with CTIA headset support Rear: (2) Type-A Hi-Speed USB; (2) Type-A SuperSpeed USB 5 Gbps signaling rate port; (2) Type-A SuperSpeed USB 10 Gbps signaling rate port; (2) DisplayPort™ 1.4; (1) Audio-out; (1) RJ45; (1) VGA
Input device	HP USB Wired Keyboard & HP USB Optical Mouse
Dimensions - Chassis (W x H x D)	13.3 x 12.13 x 3.94 in / 338 x 308 x 100 mm
Power	260W active PFC / 80 PLUS Platinum 90/92/89% efficient at 20/50/100% load (115V) 91/93/90% efficient at 20/50/100% load (230V)
