Description

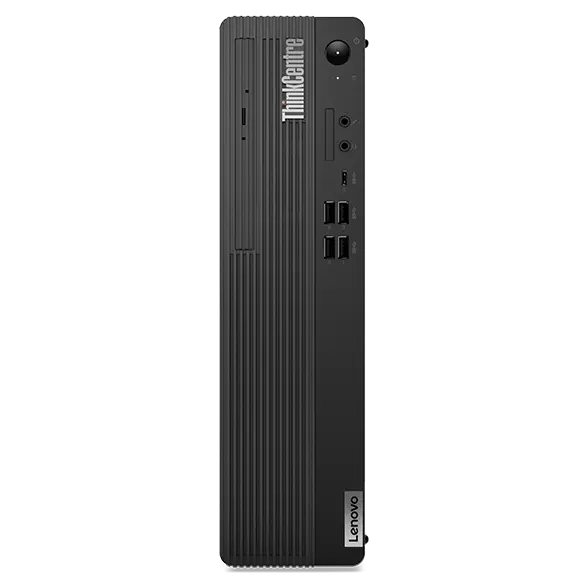

Lenovo ThinkCentre® M70s G5 (12U8002KME)
Specification
| Processor | Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB |
| Graphics | Integrated Intel® UHD Graphics 770 |
| Chipset | Intel Q670 Chipset |
| Memory | 1x 16GB UDIMM DDR5-4800 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Optane Memory | None |
| Storage Support | Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each |
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers | 1Wx1 |
| Power Supply | 260W 90% |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm Two M.2 slots (one for WLAN, one for SSD) |
| Form Factor | SFF (8.2L) |
| Dimensions (WxDxH) | 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches) |
| Weight | Around 5.3 kg (11.7 lbs) |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| Front Ports | 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |

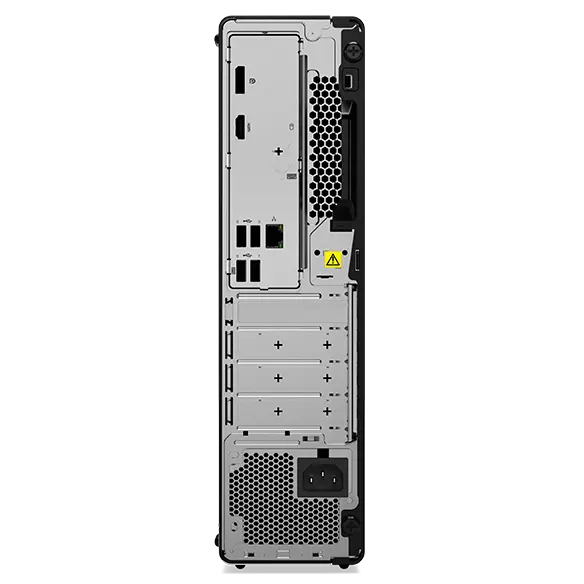

| Rear Ports | 4x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Kensington® Security Slot™, 3 x 7 mm Padlock Loop |
| Warranty | Free Upgrade to 3Y Premier Support Upgrade from 1Y Onsite |
| Operating System | Windows® 11 Pro, English |
