Description

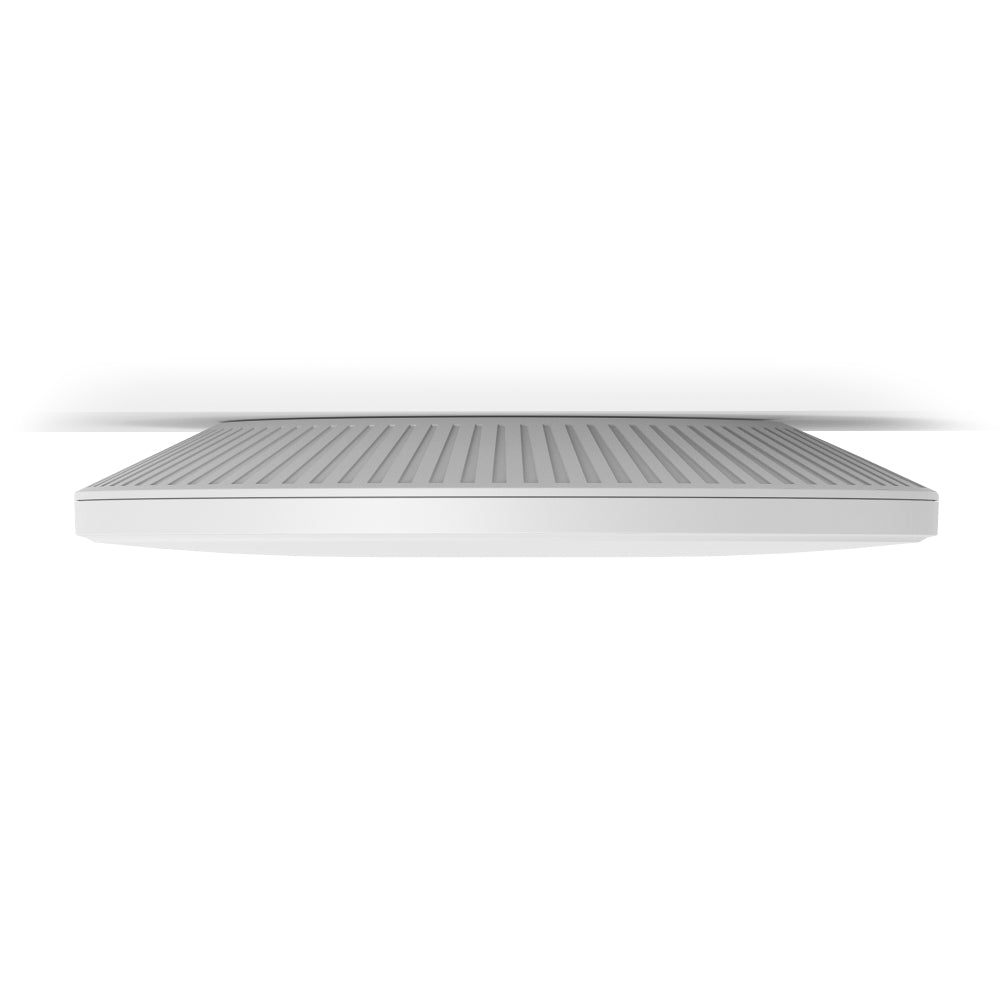

Omada BE19000 Celing Mount Tri-Band Wi-Fi 7 Access Point
- BE19000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 2× 10G Port: Unlock the full potential of Wi-Fi 7.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions: Supports centralized management, mesh, and seamless roaming.
| GENERAL | |
|---|---|
| Weight | Net Weight:1384.6g |
| HARDWARE FEATURES | |
|---|---|
| Interface | 2× 10G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt PoE++ or 12V DC |
| Power Consumption | 39W |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi |
| Bluetooth | Yes |

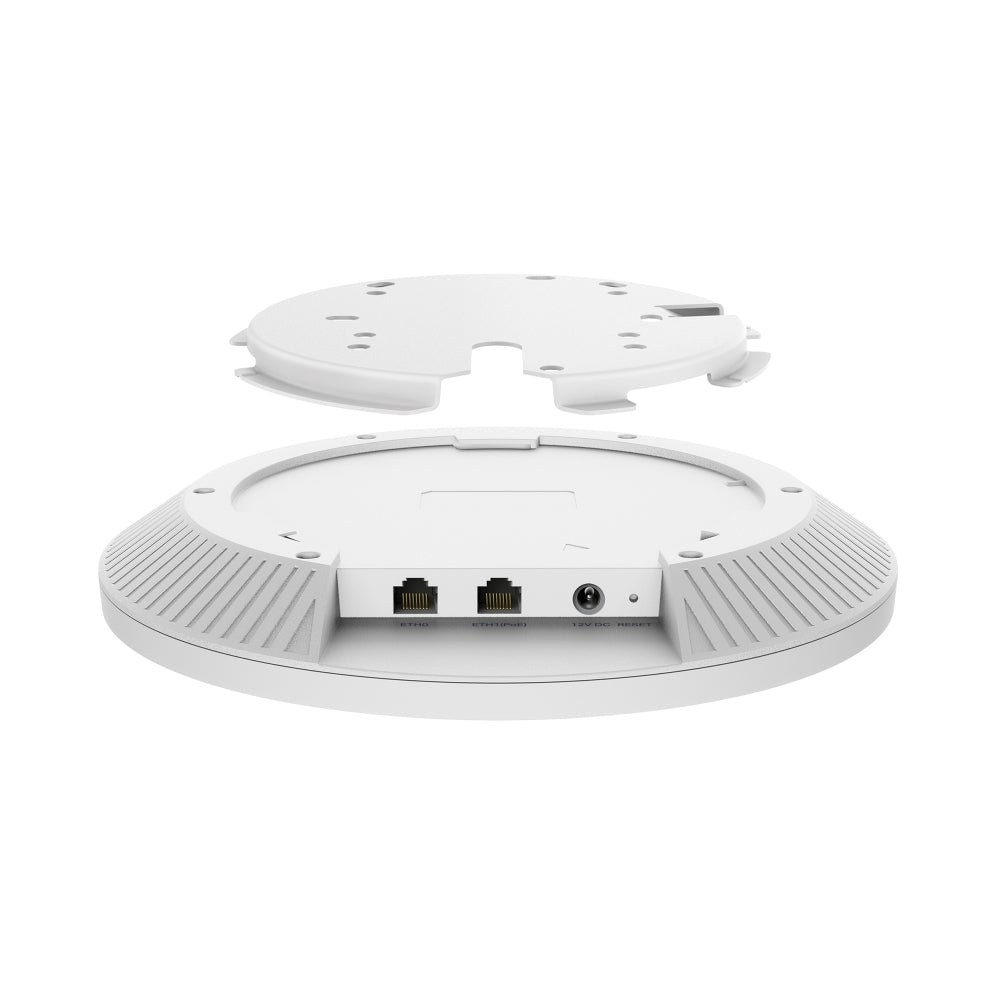

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 200㎡ (2150 ft²) § |
| Concurrent Clients | 760+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps |
| Wireless Functions | • MLO • 4K-QAM • MU-MIMO • HE320 • Mesh • Automatic Channel Selection and Power Adjustment • BBS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Schedule • Reboot Schedule |
| Wireless Security | • PPSK • Captive Portal Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise |
| Transmission Power | • FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP783 • Installation Guide • Ceiling/Wall Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
