Description

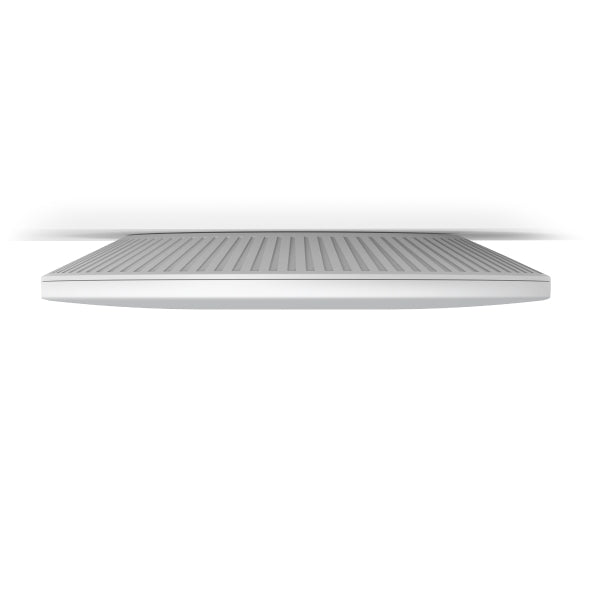

Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Blazing-Fast WiFi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
| HARDWARE FEATURES | |
|---|---|

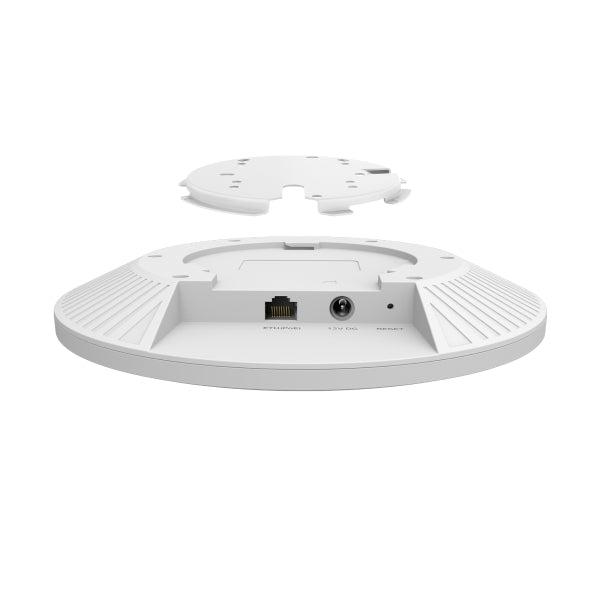

| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 2 A DC Note：Power adapter is not included. |
| Power Consumption | 20.43 W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 512** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | • EAP683 LR • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
