Description

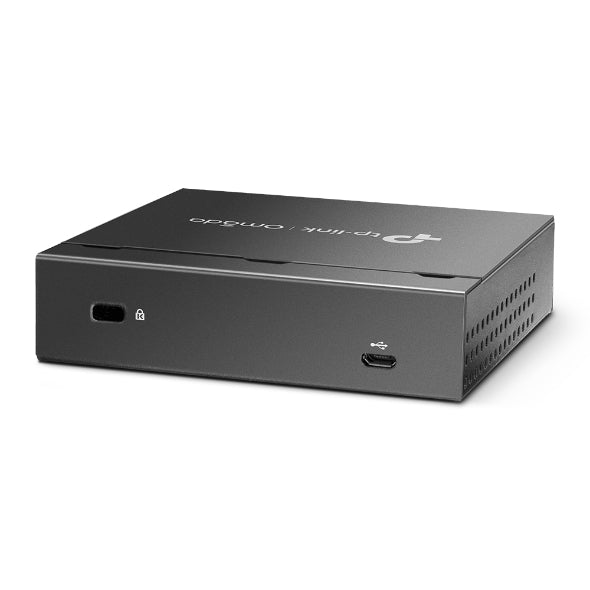

Omada Hardware controller OC200
-
Professional centralized management for Wi-Fi network
-
Free cloud access to manage from anywhere, anytime
-
PoE (802.3af/802.3at) supported for easy installation
-
Industry leading hardware design with powerful chipset, durable metal casing, and USB port for auto backup
-
Omada App for a convenient management
-
Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Vourcher)
| HARDWARE FEATURES | |
|---|---|
| Interface | 10/100Mbps Ethernet Port*2 USB 2.0 Port*1 Micro USB Port*1 |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） |
| Dimensions | 3.9×3.9×1.0in. (100×98×25mm) |
| FEATURES | |
|---|---|
| Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering Airtime Fariness Beamforming Rate Limit Wireless Schedule QoS |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection |
| AP Management | Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF |
| Authentication | Captive Portal |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 Clients Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Omada Cloud Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
