Description

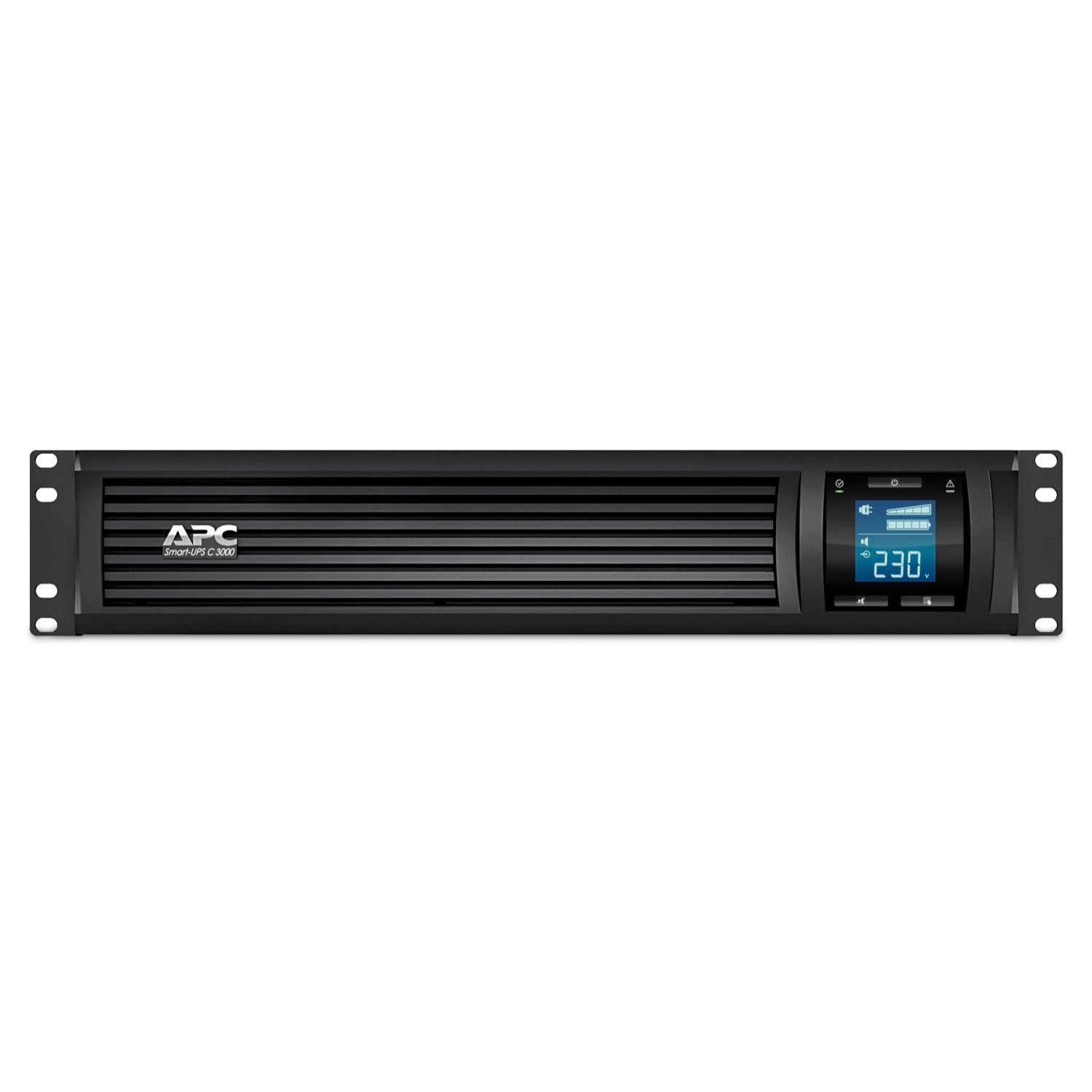

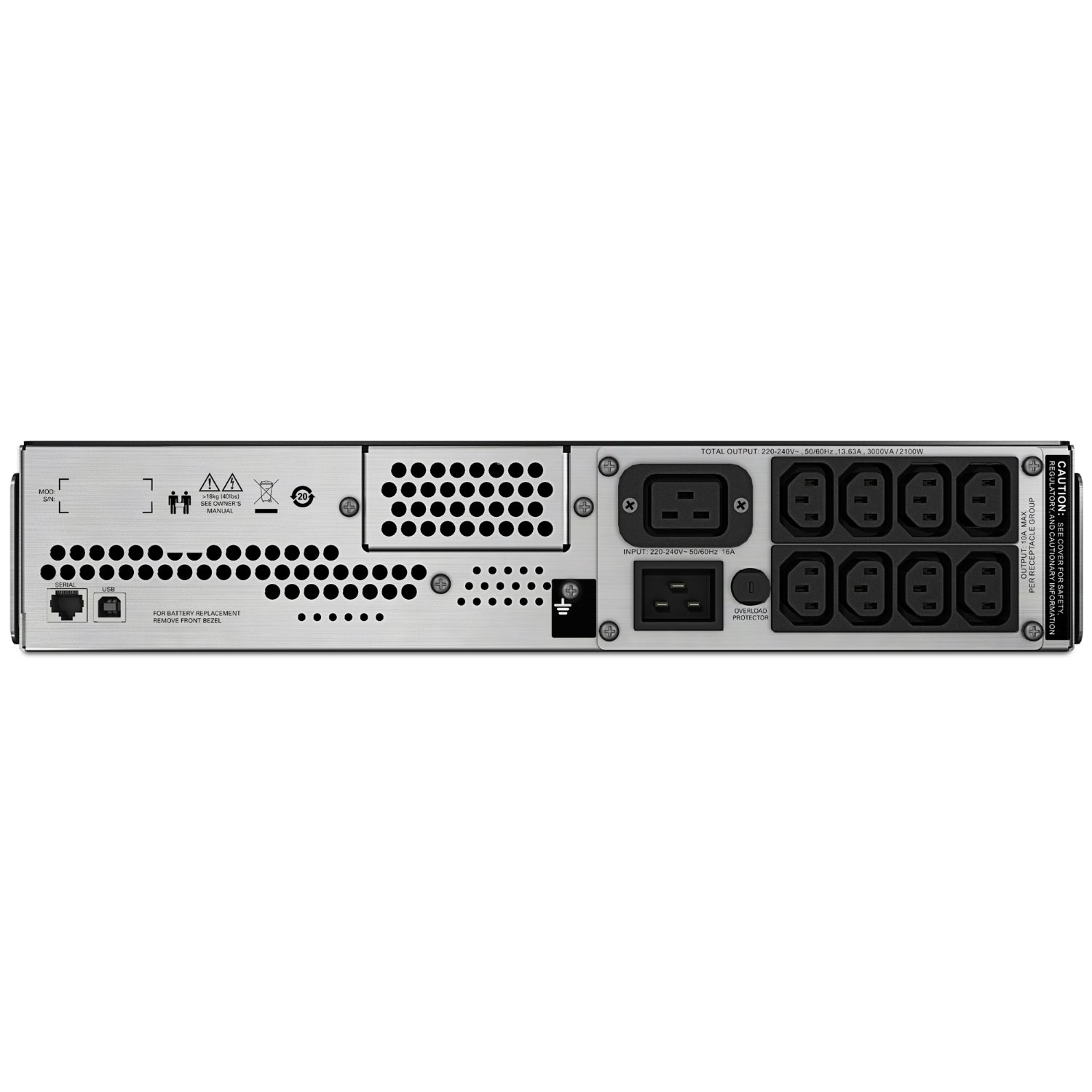

Smart-UPS C 3000VA rack mount LCD 230V (SMC3000RMI2U)
Efficient, true sine-wave power protection for entry-level servers and network equipment.
The most affordable true sine-wave UPS’s in the Smart-UPS family . Designed for entry level servers, it is compatible with today’s active power factor corrected (PFC) power supplies. Included PowerChute Business Edition software is compatible with all major server operating systems and provides UPS management and safe system shutdown.
Specification
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| rated power in W | 2100 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 320 C20 |
| output connection type | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting brackets USB cable |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC151 |
| Battery power in VAH | 490 VAh runtime |
| Battery charger power | 163 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| product web sub-family | Entry level |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 8.9 cm |
| Width | 48 cm |
| Depth | 67 cm |
| Net weight | 41 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input voltage limits | 180...287 V |
|---|---|
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Harmonic distortion | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2100 W |
| Transfer time | 8 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50 Hz sync to mains |
| Product certifications | C-Tick CE EAC GOST IRAM SABS VDE |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 42 dBA |
|---|---|
| heat dissipation | 81 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| control panel | Multifunction LCD status and control console |
|---|---|
| Free slots | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge energy rate | 300 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.4 cm |
| Package 1 Width | 98 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 50.9 kg |
| Warranty | 2 years repair or replace |
|---|
