Description

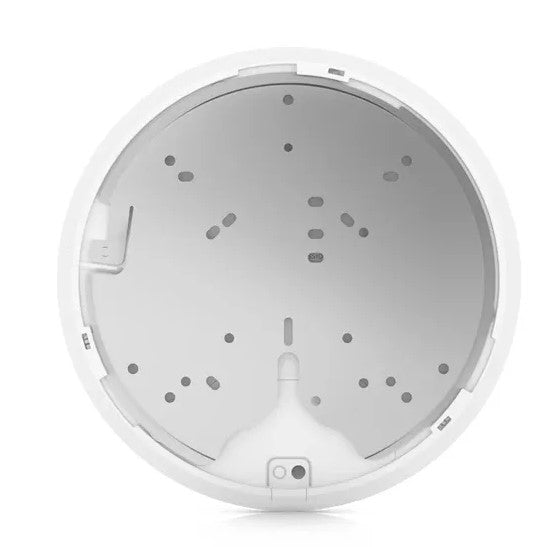

Ubiquiti Wireless Access Point UBNT-U6-PRO-R
Best-in-class Wi-Fi coverage and performance
With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.
Four-stream high-efficiency Wi-Fi 6 technology
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Easily set up and grow your network
The U6-LR access point seamlessly integrates with the UniFi Network Application and simplifies network bridging
High-performance, indoor/outdoor WiFi 6 access point with extended signal range.
Features:
-
5 GHz WiFi 6 band (4x4), 2.4 GHz WiFi 4 band (4x4)
-
3.0 Gbps aggregate throughput rate
-
Horizontal, downward-tilted antenna pattern to widen coverage area
-
(1) GbE RJ45 port (PoE In)
-
Powered with PoE+
Specification
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") |
| Weight | Without mount: 800 g (1.76 lb) |
| With mount: 930 g (2.05 lb) | |
| Enclosure material | Plastic |
| Mount material | SGCC Steel |
| Weatherproofing | IP54 |
| Management interfaces | Ethernet |
| Bluetooth | |
| Networking interface | (1) GbE RJ45 port |
| Button | Factory reset |
| LED* | White/Blue |
| *Due to chip supply shortages, the U6 LR's LED has been limited to only white and blue color modes. | |
| Power method | PoE+, passive PoE (48V) |
| Power supply | UniFi PoE switch |
| 48V, 0.5A PoE adapter (not included) | |
| Supported voltage range | 44 to 57VDC |
| Max. power consumption | 16.5W |
| Max. TX power | 2.4 GHz-26 dBm |
| 5 GHz-26 dBm | |
| MIMO | 2.4 GHz-4x4 |
| 5 GHz-4x4 | |
| Throughput rate | 2.4 GHz -600Mbps |
| 5 GHz -2400 Mbps | |
| Antenna gain | 2.4 GHz -4dBi |
| 5 GHz -5.5 dBi | |
| Mounting | Wall/ceiling (included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g |
| WiFi 4/WiFi 5/WiFi 6 | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
