Description
LOGITECH™ RALLY PLUS SYSTEM 960-001242 (LOCAL WARRANTY IN Malaysia)
Note: This is the full set that includes:
✔️ Rally Conference camera
✔️ Rally Speakers x 2
✔️ Rally Microphone pods x 2
✔️ Display Hub
✔️ Table Hub
Need a smaller setup with fewer speakers? Click here
Premium PTZ camera with Ultra-HD imaging system and automatic camera control
- RightSense™ technology automates a better user experience
- Advanced optics frame every participant with amazing clarity
- Sleek industrial design for any professional meeting space
- Modular style allows for additional speakers/ microphones when required
Discover your ideal ConferenceCam for your meeting room
PEERLESS PERFORMANCE. EXCEPTIONAL VERSATILITY
STUDIO-QUALITY VIDEO
With an Ultra-HD imaging system, Rally Camera delivers brilliantly sharp video, outstanding colour, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight™ technology optimises light balance to emphasise faces and render natural-looking skin tones, even in dim or backlit conditions.
SEE EVERYONE, PERFECTLY FRAMED
Logitech RightSight™ camera control automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
Future Availability: RightSight will be enabled by a software download, with initial support for Windows 10.
DIMENSIONS
-
Rally Camera
- Height x Width x Depth:
- 182.5 mm x 152 mm x 152 mm
Rally Speaker
- Height x Width x Depth:
- 103 mm x 449 mm x 80 mm
Rally Mic Pod
- Height x Width x Depth:
- 21 mm x 102 mm x 102 mm
Rally Display Hub
- Height x Width x Depth:
- 40 mm x 206 mm x 179 mm
Rally Table Hub
- Height x Width x Depth:
- 40 mm x 176 mm x 138 mm
SYSTEM REQUIREMENTS
Operating Systems
- Windows® 7, Windows 8.1 or Windows 10
- macOS 10.10 or higher
- Chrome OS
Resolutions higher than 1080p
- Windows 8.1 or higher or macOS 10.10 or higher
- USB 3.0 port and Type C cable
- Compatible software
Additional Software
- RightSight automatic camera control
TECHNICAL SPECIFICATIONS

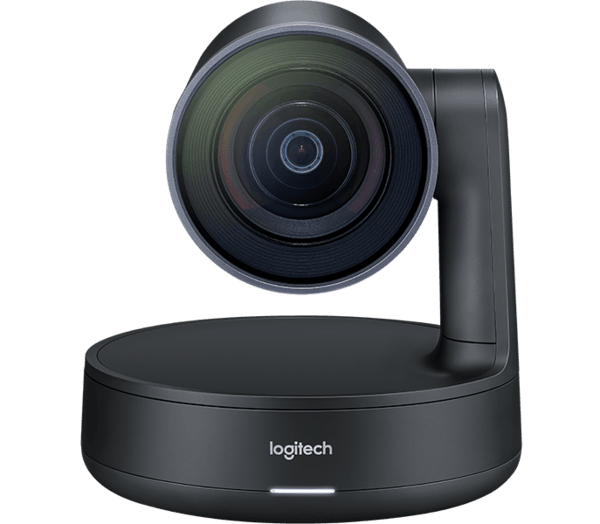

CAMERA
- Ultra-HD imaging system supports:
- 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- 1080p, 720p at 30fps and 60 fps
- Smooth motorized pan, tilt and zoom
- Pan: ±90°
- Tilt: +50° / -90°
- 15x HD zoom
- 90° field of view
- Autofocus
- 3 camera presets
- Kensington security slot
- Video mute/unmute LED indicator
- Standard tripod thread
- Lens parks at -90° in sleep mode for assured privacy
RALLY MIC POD
- Pickup range: 4.5 m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Mute button with LED status indicator
Captive 2.95 m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90 Hz – 16 kHz
Sensitivity: >-27 dB +/-1 dB @ 1 Pa
Microphone data rate: 48 kHz
Recommended # of participants:
Rally (one Mic Pod): 10
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46
RALLY SPEAKER
- High-performance 76 mm driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
Sensitivity: 95+/-2 dB SPL at ½ meter
Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
Speaker sampling rate: 48 kHz

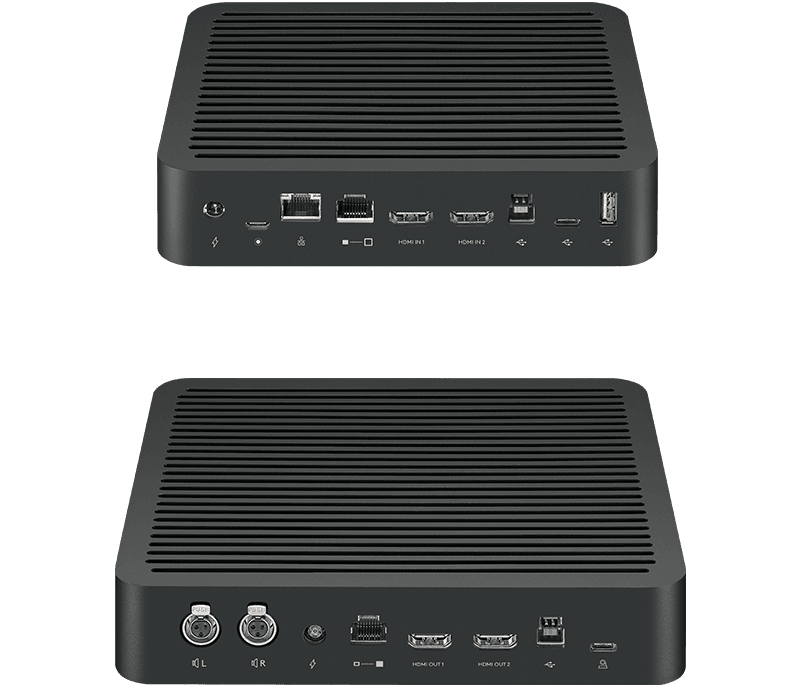

RALLY TABLE HUB
- Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input
RALLY DISPLAY HUB
- HDMI Type A (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45 (connects to Table Hub)
Mini XLR (x2)
Powers one or two Rally Speakers
Power input

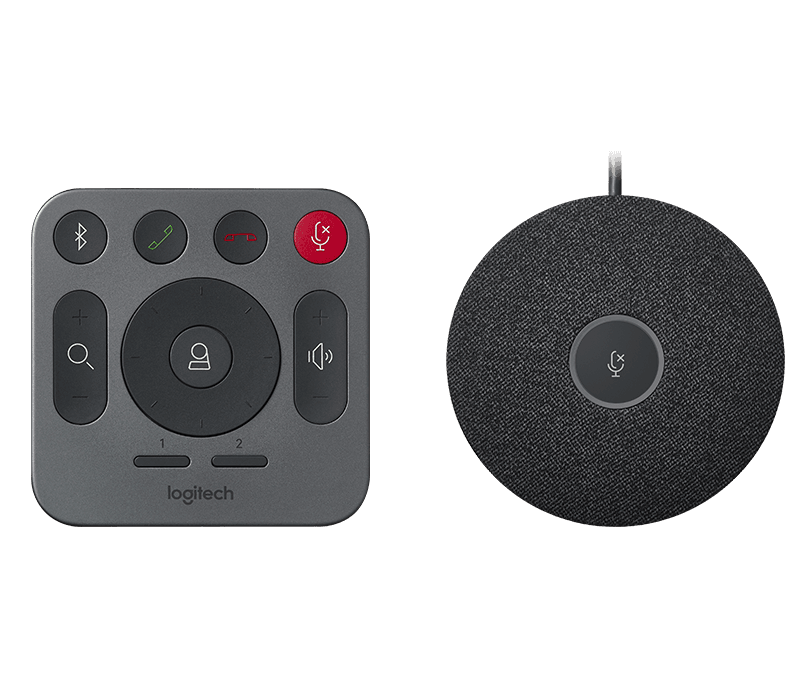

REMOTE CONTROL
- RF remote control (line of sight not required)
- CR2032 batteries (included)
RIGHTSENSE™ TECHNOLOGIES
- RightLight™ with Wide Dynamic Range (WDR)
- RightSight™ automatic camera control2
CABLES / POWER
- Camera to Display Hub
2 m USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub
2 m USB 3.1 Type A to USB Type B
- Display Hub to Table Hub
5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
- Display Hub to Speaker (x2)
2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
- Conference Room Computer to Displays (x2)
2 m HDMI A
- Mic Pod
2.95 m: Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2)
1 m
- Power Supplies to Table Hub / Display Hub (x2)
1.5 m
MOUNT
- Invertible wall mount with power splitter bay and cable management
COMPATIBILITY
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Cisco Compatible
- Compatible with Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
AVAILABLE ACCESSORIES
-
RALLY MOUNTING KIT
Rally Mounting Kit with cable retainers (x2) and mounting brackets for the camera, speakers (x2), and hubs (x2)
RALLY MIC POD
Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
RALLY MIC POD HUB
Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
RALLY SPEAKER
Add a second Rally Speaker for larger rooms
-
PACKAGE CONTENTS
- Logitech Rally
- Rally Camera
- Rally Display Hub
- Rally Table Hub
- Rally Speaker (x2)
- Rally Mic Pod (x2)
- Remote control
- USB Type C to USB Type C
- USB Type A to USB Type B
- CAT6A Ethernet cable
- HDMI Type A (x2)
- A/C cables (x2)
- Power Supplies (x2)
- Documentation
-
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
